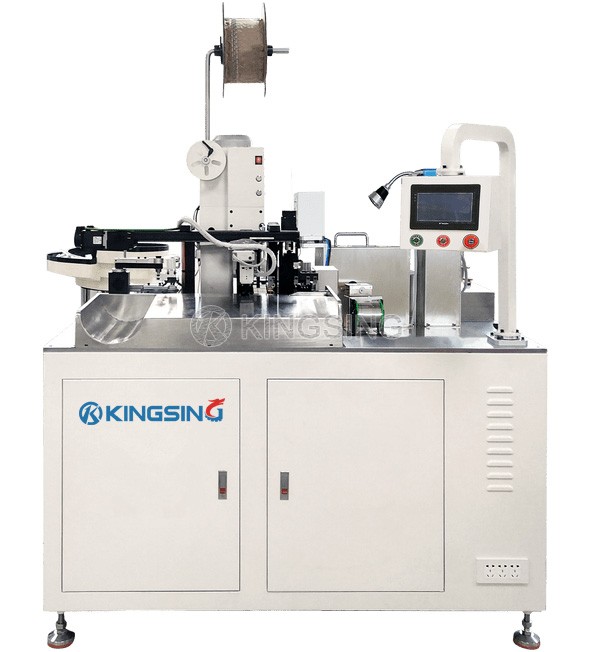

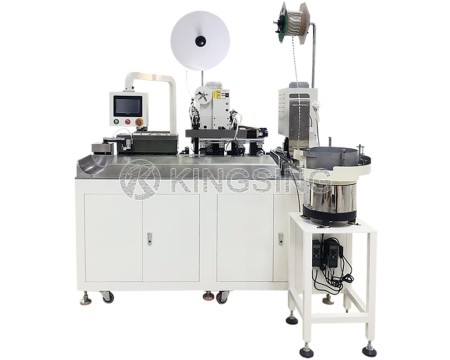

Automatic Wire Tinning Crimping and Housing Insertion Machine

  • Model:KS-T103DT
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a fully automatic wire twisting, tinning, and housing insertion machine. One end crimps the terminal and inserts the housing, the other end twists the wire and tin, and the housing is automatically fed through the vibrating plate.This machine supports wires of 3 colors by default (models with 2~8 colors can be customized), the order of colors can be arbitrarily specified in the program, the length of each wire can be set separately, and wires of each color can be used multiple times , For example, the wires of 3 colors can be taken twice for each color, and automatically inserted into the 6-hole housing in sequence after crimping the terminal.It supports non-standard customization. The ultrasonic welding function can be added for special housings.

  2. The whole machine adopts the concept of modular and flexible design. One machine can easily process a variety of different products. Each functional module can be opened or closed freely in the program.For example, when the function of housing insertion is turned off, it can be used as an ordinary automatic twisting and tinning terminal machine.When replacing terminals, it is only necessary to replace the corresponding crimping dies, vibrating plate feeding system and corresponding inserting jigs. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. This machine uses a translation mechanism to replace the traditional rotation mechanism. The wire is always kept straight during the processing process, and the positioning is accurate, which effectively solves the instability problem caused by the bending of the wire, and can easily handle various high-standard wire processing.

  4. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard terminal crimping machine is driven by a variable frequency motor, and a servo terminal crimping machine can also be selected.

  5.  Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.


Applicable wire diameter: AWG24~14 (0.2~2.5mm2)

Wire quantity: 2~8 colors can be customized

Housing type: single row housing, double row housing

Housing hole: ≤20 holes

Cutting length: 75~9999mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Maximum pressure: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.

Production beat: 2 seconds per hole

Air pressure: 0.5~0.8Mpa

Power Rating: 2000W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: ≈500kg

Dimensions: 1500*800*1860mm

Wire head process: stripping, crimping terminals, housing insertion

Wire tail process: stripping, twisting, tinning

Optional configuration: long wire conveyor belt, safety shield, terminal pressure monitor, visual inspection system, servo terminal machine, computer industrial control system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
