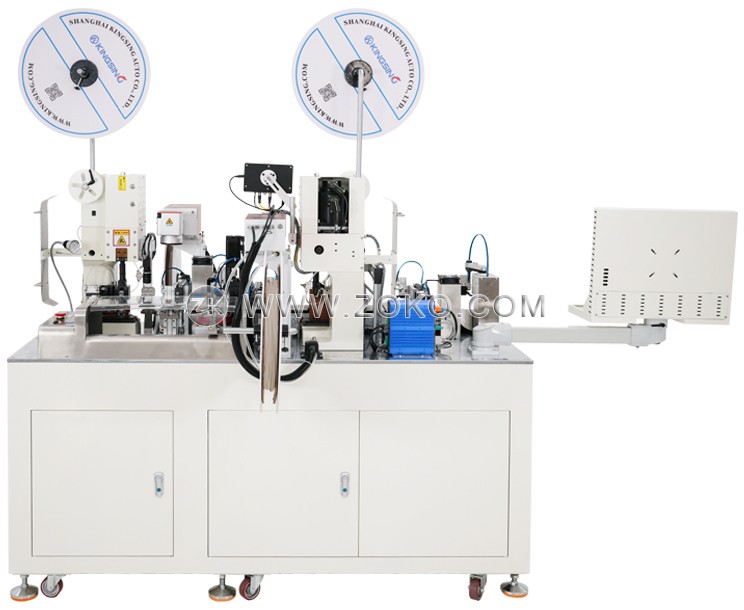

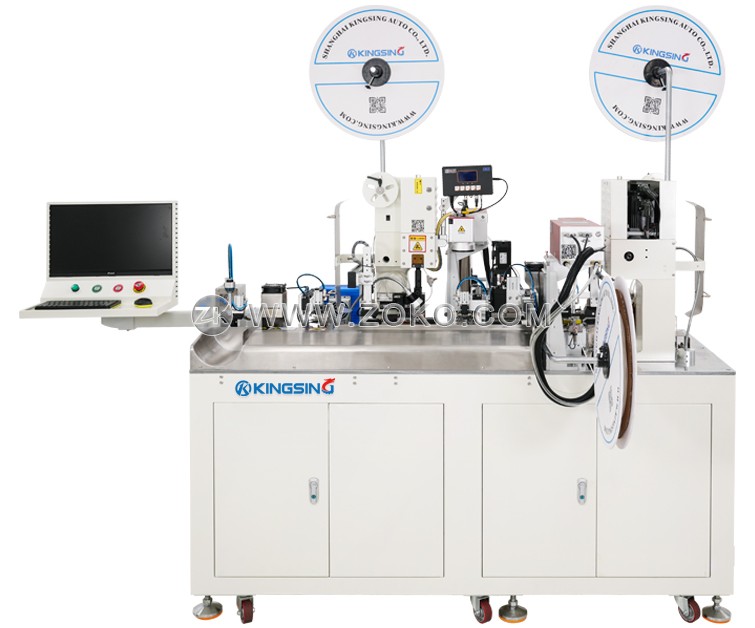

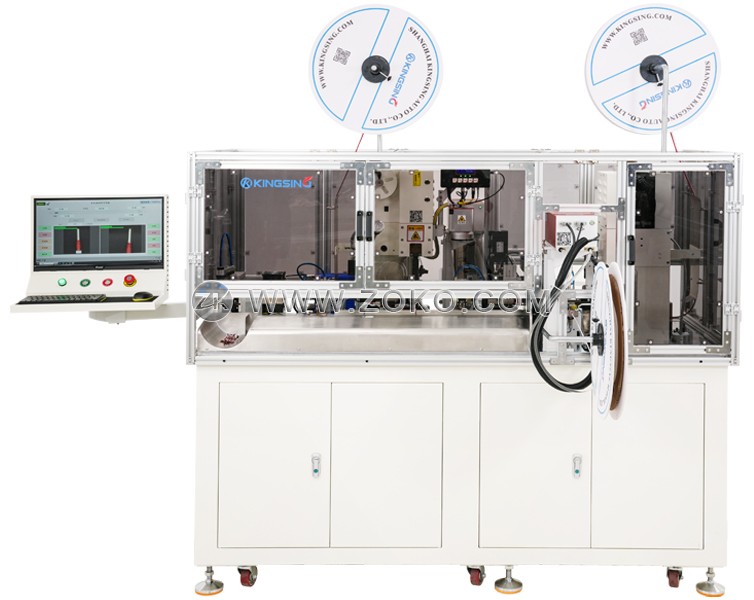

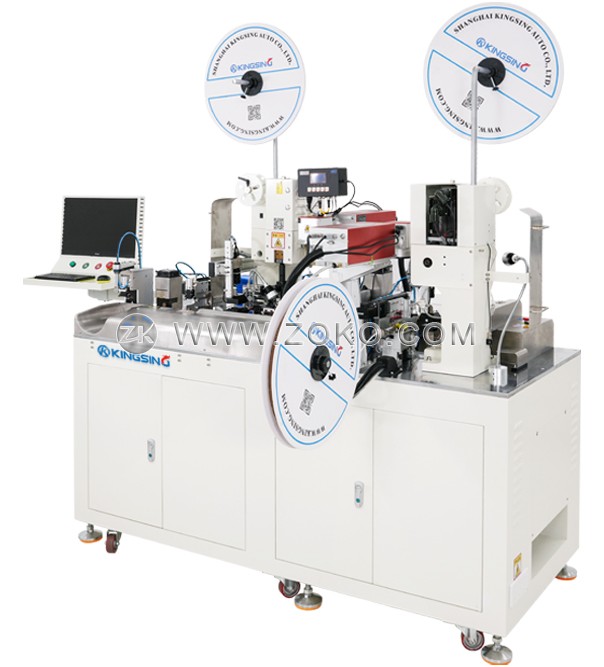

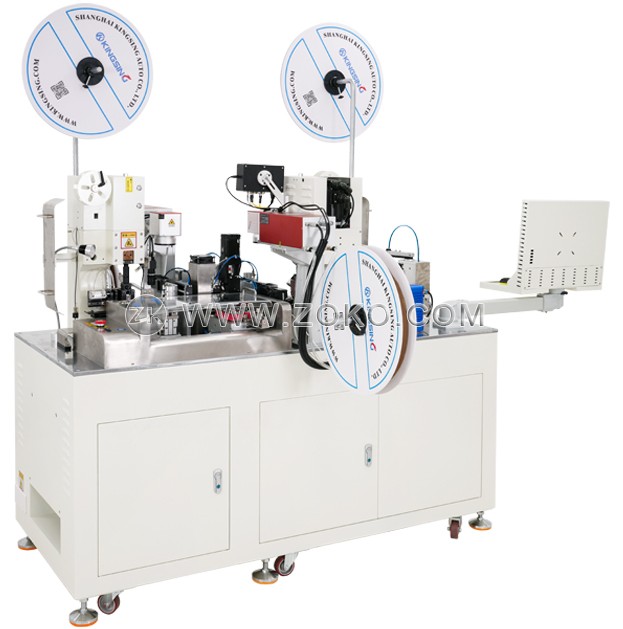

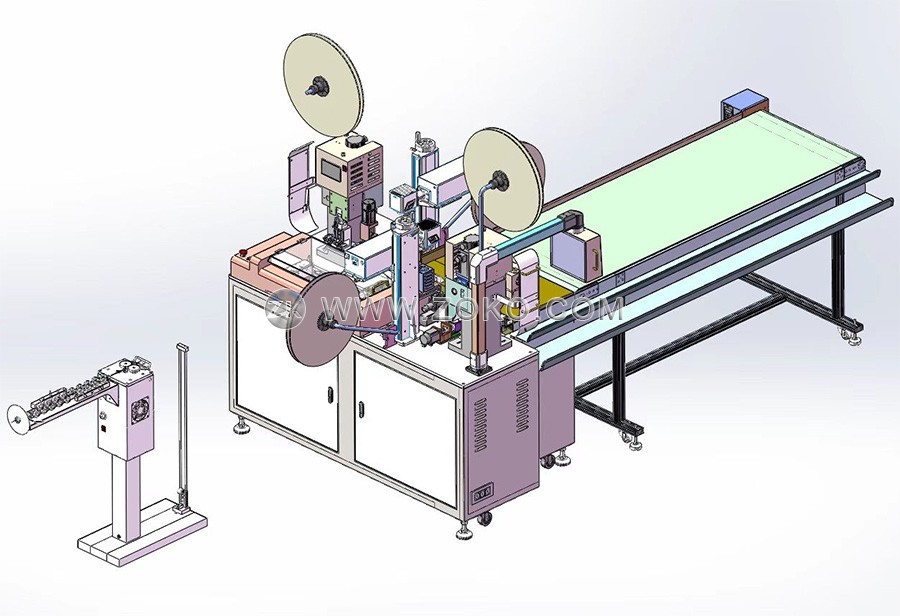

Fully Automatic Ferrule Crimping and Heat Shrinkable Tube Insertion Machine

  • Model:KS-T3103
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

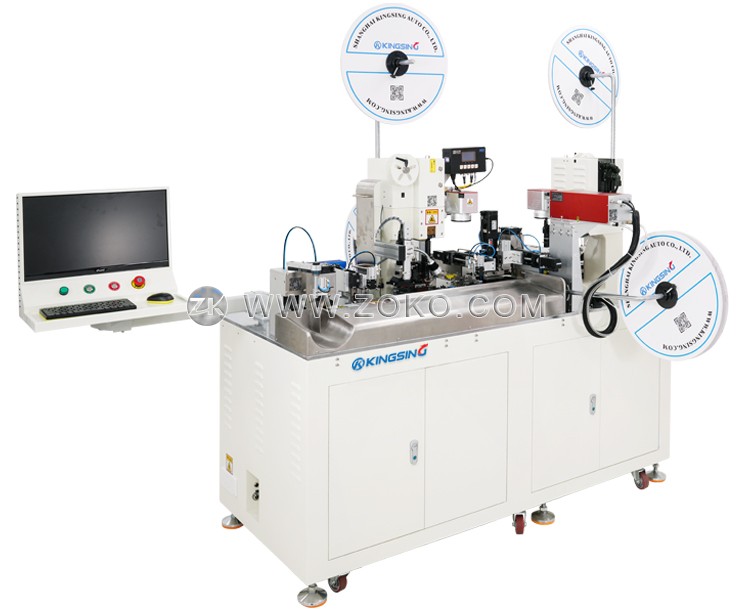

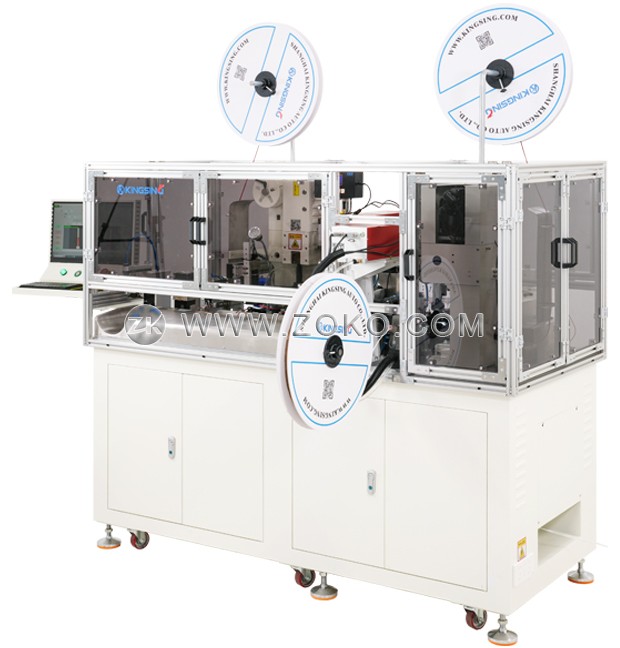

KS-T3103 is a fully automatic insulated terminal double-sided insertion heat shrinkable tube machine, which is specially designed for crimping insulated terminals. With the twisting function, the copper wires can be twisted together and then inserted into the inner hole of the terminal for crimping, which can effectively prevent the reverse wire phenomenon. This machine integrates the functions of wire cutting, wire stripping, crimping terminals on both sides, inserting heat shrinkable tubes on both sides, and laser marking. The coil-mounted heat-shrinkable tube can be cut to a fixed length, and each of the wire head and the end of the wire is equipped with a laser marking machine, which can automatically mark on the heat-shrinkable tube, and the heat-shrinkable tube is automatically heated and shrunk in place.

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Modularized structure design and mature controlling system;

  • Built-in motor, beautiful appearance, equipped with universal casters, easy to move;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Stable work, large output, and overload protection function;

  • Low noise, low energy consumption, no pollution, and small floor space;

  • High-precision servo motor, machine control is more accurate and stable, and the service life is longer;

  • The stripping and crimping parameters can be adjusted in the program, saving the debugging time;

  • With the twisting function, the copper wires can be twisted together and then inserted into the inner hole of the terminal for crimping, which can effectively prevent the reverse wire phenomenon;

  • The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program, for example, the function of inserting heat shrinkable tube can be closed;

  • When replacing wires and terminals, it is only necessary to replace the corresponding crimping dies and corresponding penetration fixtures;

  • The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop;

  • Visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality;

  • With program memory function, if the terminal and wire need to be changed, you only need to switch to the corresponding program number, no need to adjust repeatedly, improve the efficiency;

  • Optional laser marking machine, which can automatically mark on the heat-shrinkable tube, and the heat-shrinkable tube is automatically heated and shrunk in place;

  • Optional computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions;

  • The machine body is made of high-strength thick steel plate with precise dimensions to ensure the stability of crimping;

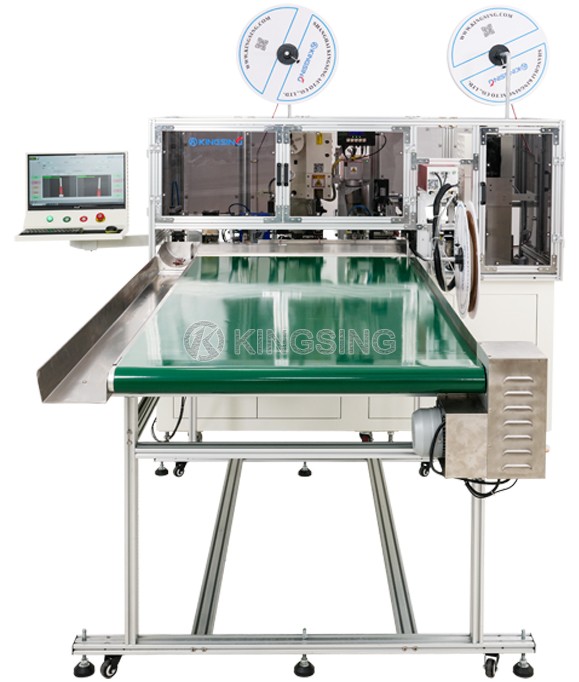

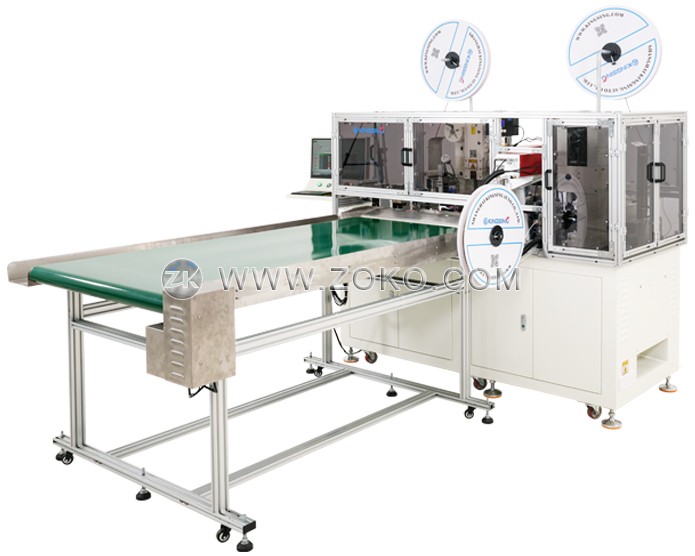

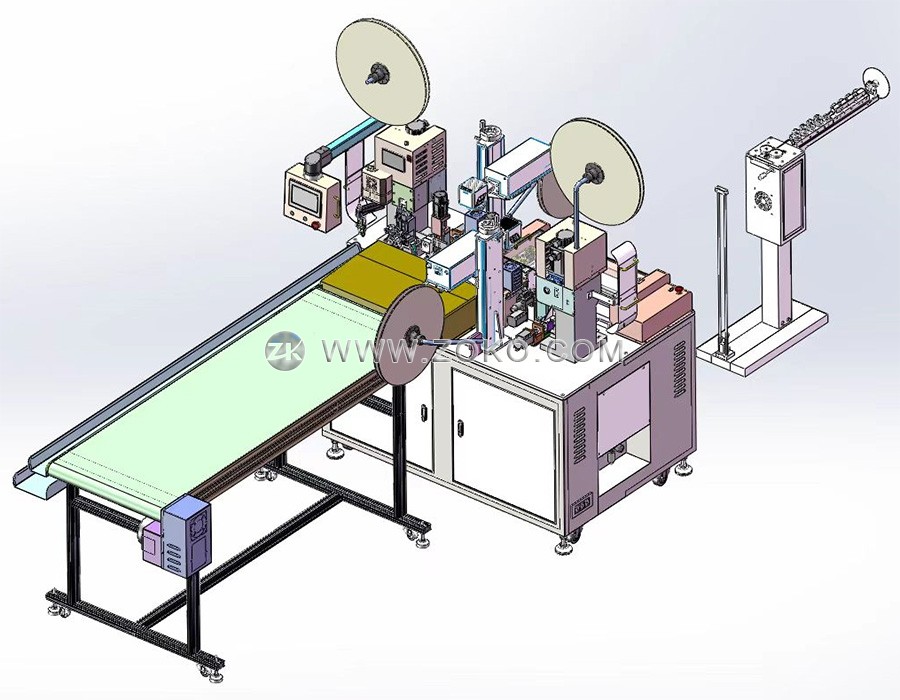

  • Optional crimping force monitoring system, visual inspection system, computer industrial control system, laser marking system, vertical wire pre-feeder and long wire conveyor belt, etc.;

  • With the functions of cover opening detection, lack of wire detection, terminal crimping detection, low air pressure detection, etc.

KINGSINGKINGSING
Bulk TypeReel Type


Download: (1)

Applicable Wire Diameter: AWG24~9 (0.2~6mm²)

Function: Wire cutting, stripping, terminal crimping, tube insertion, printing

Applicable Terminals: Joint insulated terminals (loose terminals can be equipped with vibrating plate feeding)

Capacity: 1600~2000pcs/hour (double ends insert heat shrinkable tubes, depends on the cutting length)

Cutting Length: 70~9999mm

Stripping Length: ≤14mm (can be customized)

Cutting Accuracy: ±(0.5+L*2‰) L=cutting length

Tube Positioning Accuracy: ±0.5mm

Print Function: Built-in 2 laser marking machines (also optional ribbon printer)

Crimping Force: Standard 2T (3T models can be customized)

Crimping Stroke: 30mm (40mm stroke model can be customized)

Crimping Motor: Servo Motor

Rated Power: 2500W

Display Mode: Computer industrial control system

Control Mode: MSP430E microcontroller, 165NA/MIPS working mode, 5US standby wake-up, high-speed computing

Work Voltage: AC220V/50Hz Single Phase (110V can be customized)

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Net Weight: 800KG

Dimension (L×W×H): 2050*1350*1750mm

Detection Device 1.Lack of wire 2. Wire Knotting 3. Air pressure detection 4. Door opening 5. Terminal crimping detection 6. Machine is abnormal 7. Total quantity reached

Optional Parts 1.OTP applicator and blades 2. Vertical wire pre-feeder 3. Reel type wire pre-feeder 4. Long wire conveyor belt 5. Crimping force monitor 6. Visual inspection system 7. Laser marking system 8. Computer industrial control system 9. Protective cover

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
