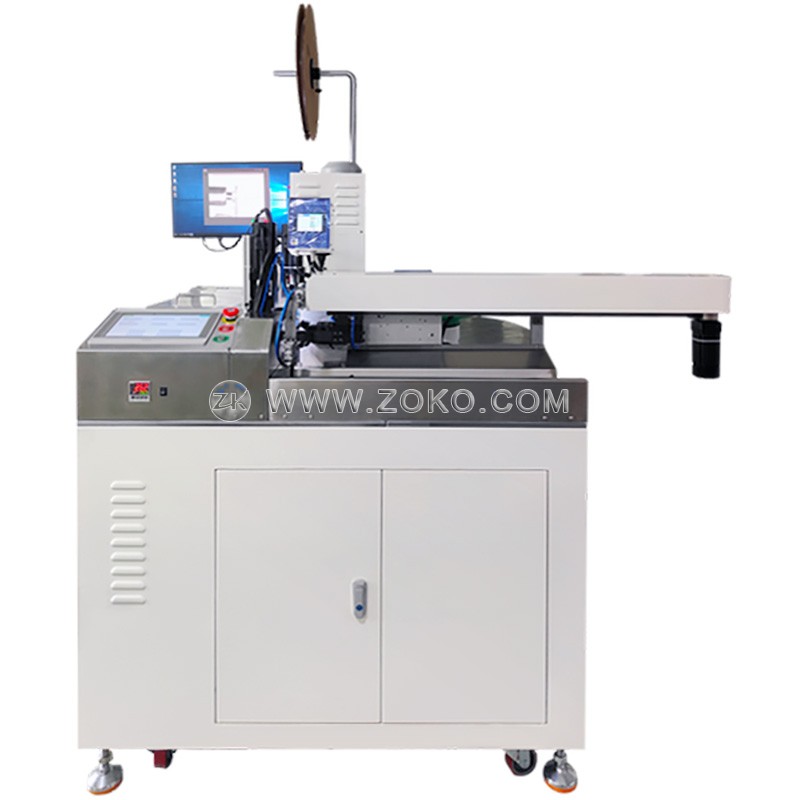

2 Core Cable Stripping Tinning Crimping & Housing Inserting Machine

  • Model:KS-A112H
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This machine is specially designed for processing 2-core sheathed wires. It integrates the functions of cutting wires, stripping outer sheaths, stripping core wires, twisting and tinning one end, and crimping terminals and inserting into housings at the other end. The built-in CCD visual inspection system can automatically adjust the color sequence of the two core wires to ensure that the core wires are inserted into the plastic shell according to the specified color sequence. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop.

  2. The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program, for example, the function of inserting the housing can be closed. When replacing the terminal, it is only necessary to replace the corresponding crimping die, vibrating plate feeding system and corresponding penetration fixture. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. This machine adopts the wire clamp to feed the wire, the length of the cutting wire is accurate, and there is no indentation on the surface of the wire sheath. The stroke of the wire clamp can be customized according to the length of the wire cutting required by the customer. Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors. The cutter adopts a positive and negative screw structure, which has high stripping precision and precise positioning of the punching terminal, which can easily handle various high-standard wire processing.

  4. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Applicable wire: 2-core round sheathed wire, 2-core flat sheathed wire

Applicable wire diameter: AWG28~16 (0.1~1.5mm2)

Cutting length: 80~1000mm (can be customized)

Outer sheath stripping length: 20~50mm

Core wire stripping length: ≤10mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Maximum pressure: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Production efficiency: 600~700 pieces/hour

Applicable terminal: horizontal feed terminal, straight feed terminal

Operation interface: color touch screen

Detection device: CCD visual detection system, lack of wires, presence of terminals, etc.

Air pressure: 0.5~0.8Mpa

Rated power: 2000W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: 380kg

Dimensions: 1700*800*1600mm

Optional configuration: safety shield, terminal pressure monitor, servo terminal machine, computer industrial control system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
