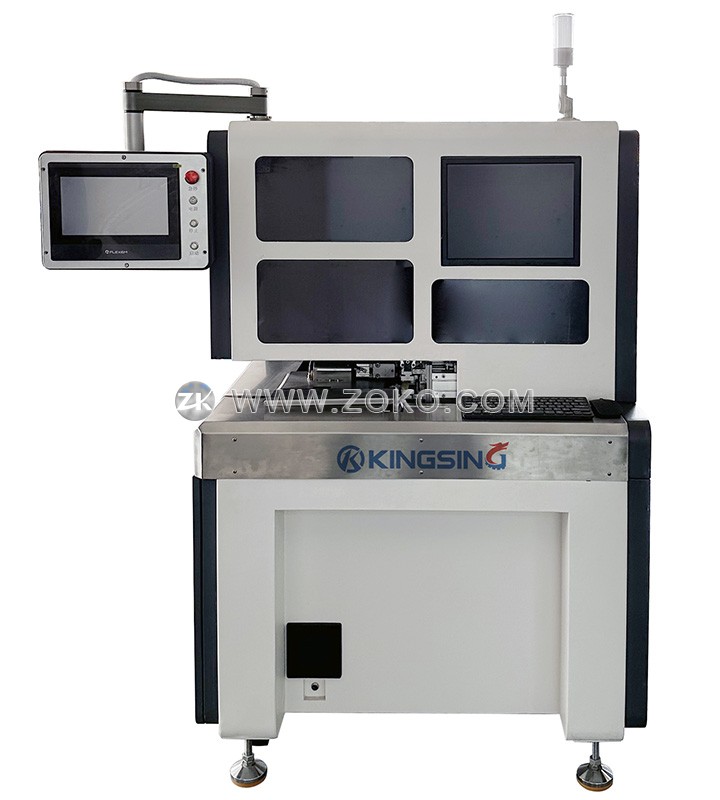

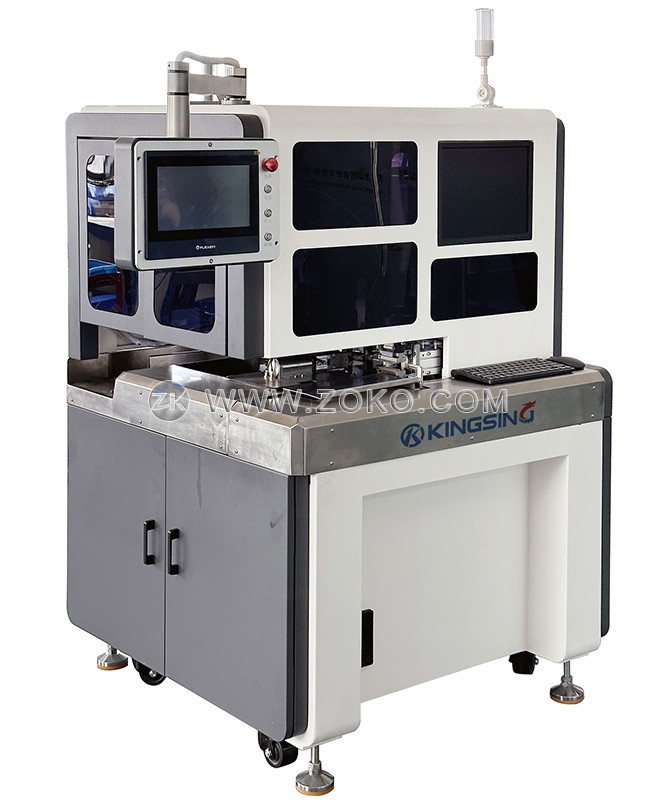

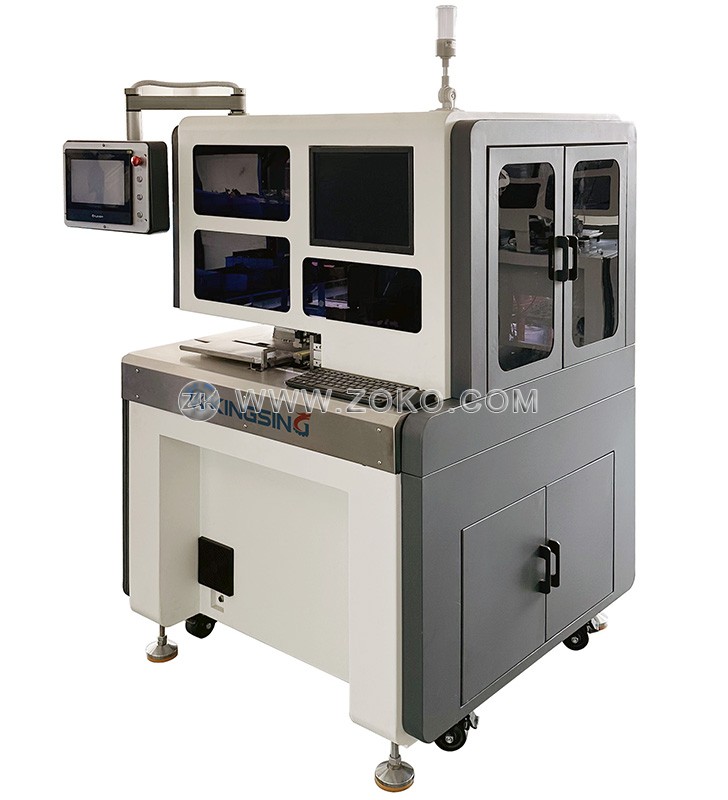

Multi-core Cable Stripping Crimping & Housing Insertion Machine

  • Model:KS-A111H
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a semi-automatic multi-core sheath wire stripping crimping terminal and housing insertion equipment. The operator needs to manually snap the core wires into the jig according to the specified color sequence.Then the machine can automatically complete the actions of core wire cutting, stripping, crimping terminals, and housing insertion, and the housing is automatically fed through the vibrating plate.

  2. The whole machine adopts the concept of modular and flexible design. One machine can easily process a variety of different products.When replacing terminals, it is only necessary to replace the corresponding crimping dies, vibrating plate feeding system and corresponding inserting jigs. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.The core wires of the sheath wire usually have multiple colors. For the case of more than 3 core wires, it is difficult for the current automatic equipment to automatically arrange the core wires in the specified color order, so this machine adopts manual wire arrangement Solve this problem by means of the method, and then the machine automatically completes the rest of the work, which greatly improves the production efficiency of the multi-core sheathed wire housing insertion.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Applicable wire diameter: AWG28~12 (0.1~2.5mm2)

Core wire outer diameter: Φ0.6~2.5mm

Wire type: 2~12 core sheathed wire (or cable)

Outer sheath stripping length: the shortest 34mm for 2~5 cores, the shortest 40mm for 6~12 cores

Core wire stripping length: ≤10mm (can be customized)

Terminal Type: Continuous Cross Feed Terminals

Maximum pressure: 1.5T

Crimping stroke: 30mm (40mm stroke model can be customized)

Operation interface: color touch screen (optional computer industrial control system)

Built-in function: CCD visual detection system

Optional configuration: terminal pressure monitor, computer industrial control system

Air pressure: 0.5~0.7Mpa

Rated power: 2000W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: 300kg

Dimensions: 1265*1200*1750mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
