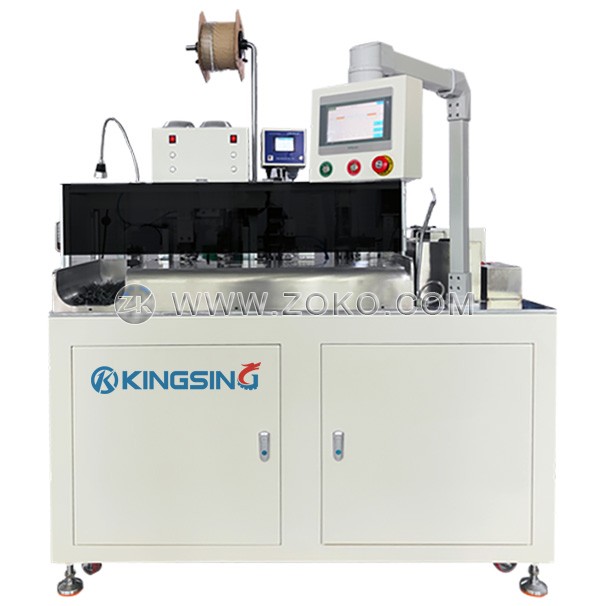

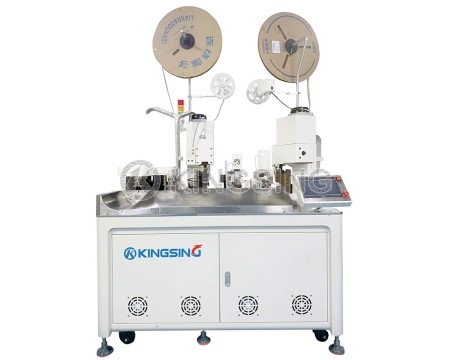

Parallel Bonded Cable Tinning Crimping and Insulated Sleeve Insertion Machine

This is a double-wire automatic terminal machine for twisting, tinning, and inserting insulating sheaths. It integrates the functions of cutting wire, stripping wire, splitting wire, twisting wire, dipping tin, crimping terminal, inserting insulating sheath, etc.One end crimps the terminal and inserts the 2 insulating sheaths, and the other end is twisted and tinned. The insulating sheath is automatically fed through the vibrating disc, and the sheath is threaded on the wire after cutting、stripping and spliting the wires.After the terminal crimping is completed, the insulating sheath is automatically pushed onto the terminal. There are 2 terminal crimping machines on this platform, so 2 different terminals can be crimped for two wires and inserted into different sheaths respectively.

The whole machine adopts the concept of modular and flexible design. One machine can easily process a variety of different products. Each functional module can be opened or closed freely in the program. For example, the function of inserting the sheath can be turned off, and it can be used as an ordinary two-wire crimping and tin dipping machine.When replacing the terminal and insulating sheath, it is only necessary to replace the corresponding crimping die, vibrating plate feeding system and corresponding sheathing jig. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. This machine uses a translation mechanism to replace the traditional rotation mechanism. The wire is always kept straight during the processing process, and the positioning is accurate, which effectively solves the instability problem caused by the bending of the wire, and can easily handle various high-standard wire processing.

The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard terminal crimping machine is driven by a variable frequency motor, and a servo terminal crimping machine can also be selected.

Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.
