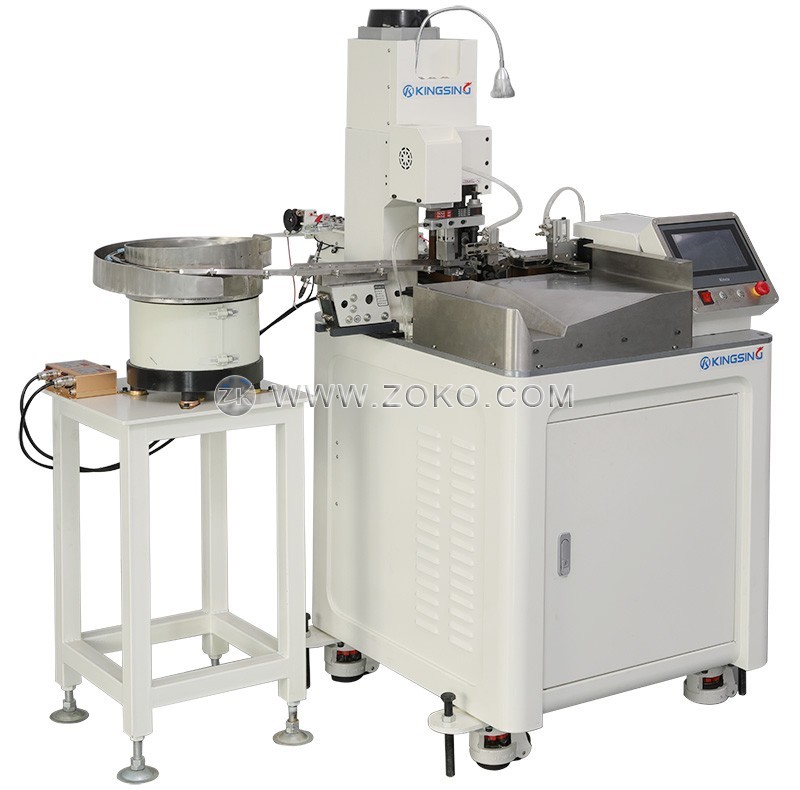

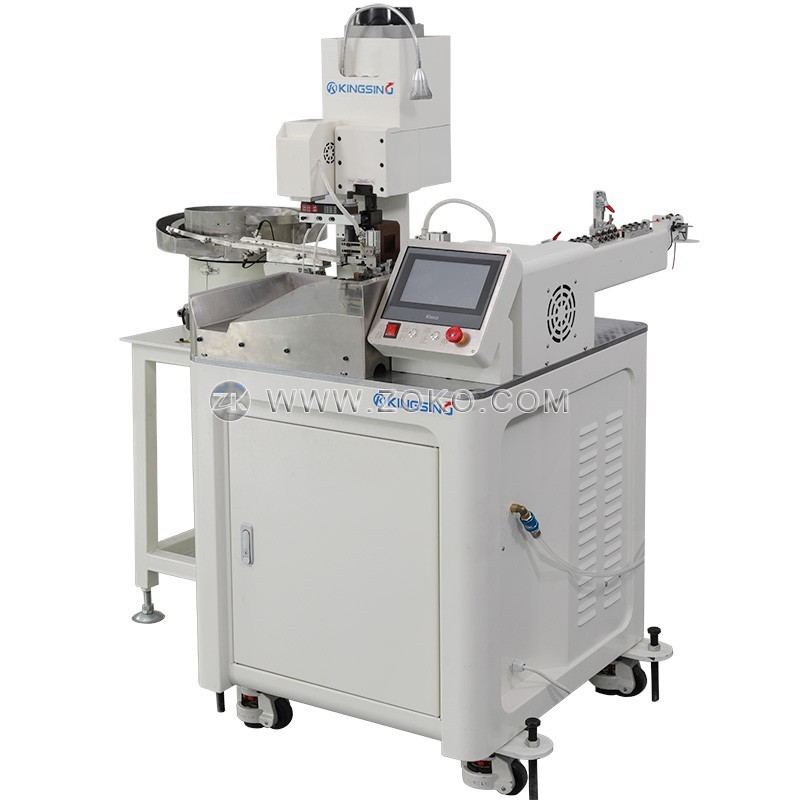

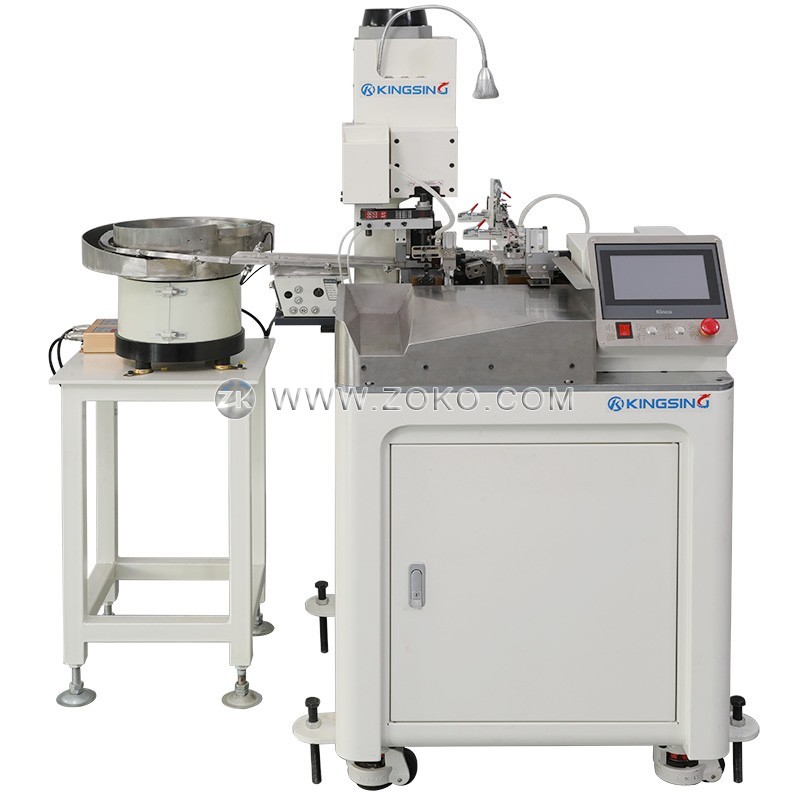

Automatic Temperature Protector Crimping Machine

  • Model:KS-A901
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

This machine is specially designed for the riveting of thermal protectors and electric wires. The thermal protectors are automatically fed through the vibrating plate. There are 2 sets of independent wire feeding mechanisms on the platform, which support feeding 2 different wires at the same time. And the cutting length of the two wires can be set independently, so the length of the two wires can be different. After cutting and stripping, one end is automatically riveted to the temperature protector, and the other end of the wire supports full stripping and half stripping.

Download: (1)

Applicable wire diameter: AWG26~14 (0.1~2mm2)

The number of incoming wire: 2

Cutting length: 45~9999mm

Stripping length: ≤15mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminal: temperature protector

Production efficiency: 1500~2500 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 320kg

Dimensions: 650*700*1500mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
