  3. One-sided Crimp Machine

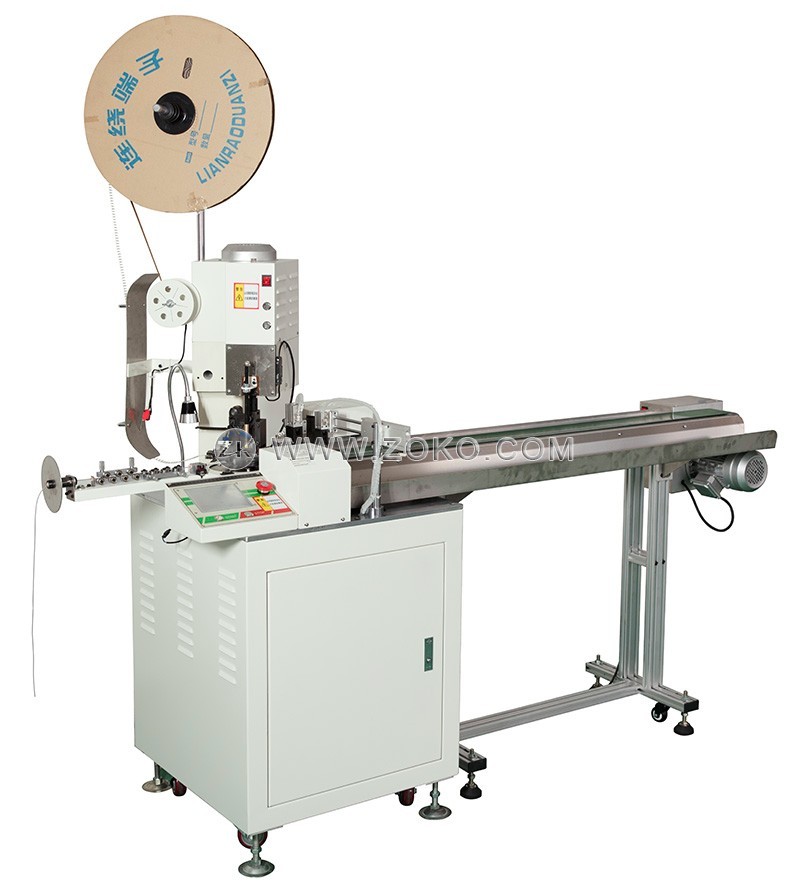

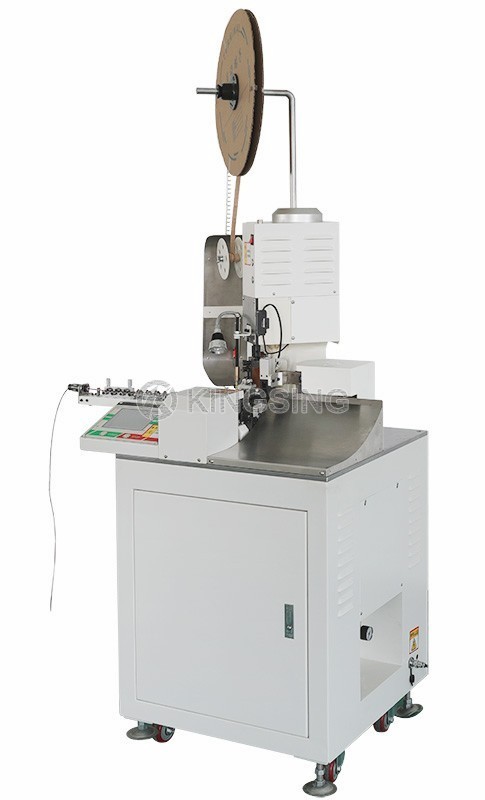

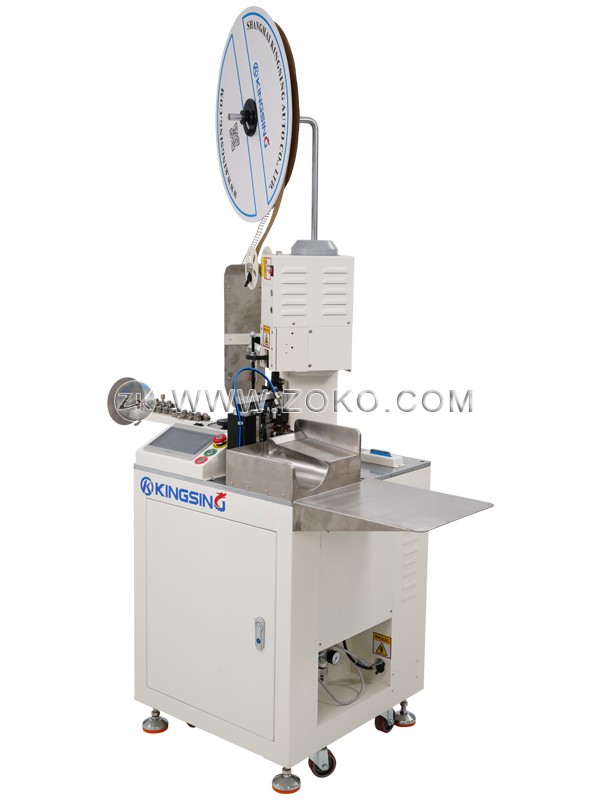

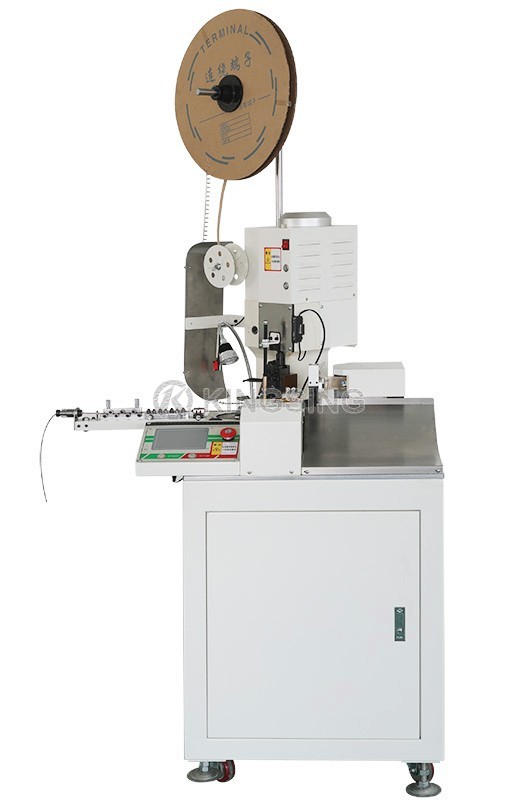

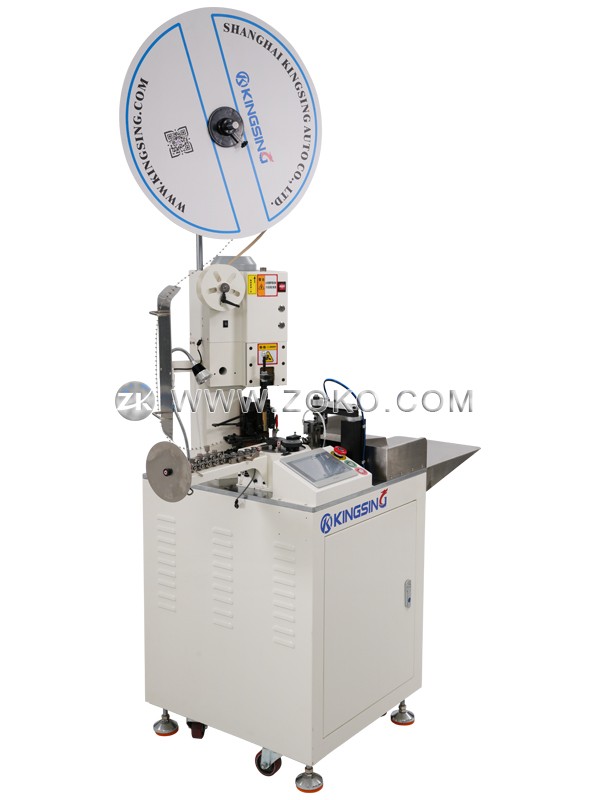

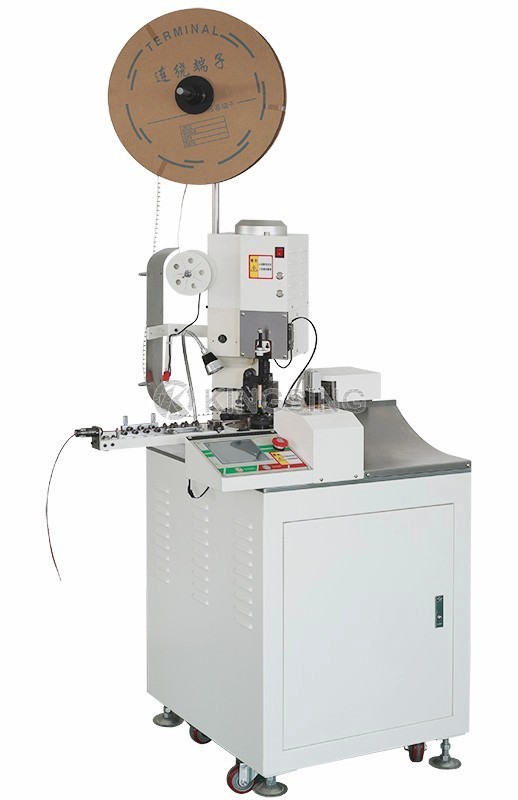

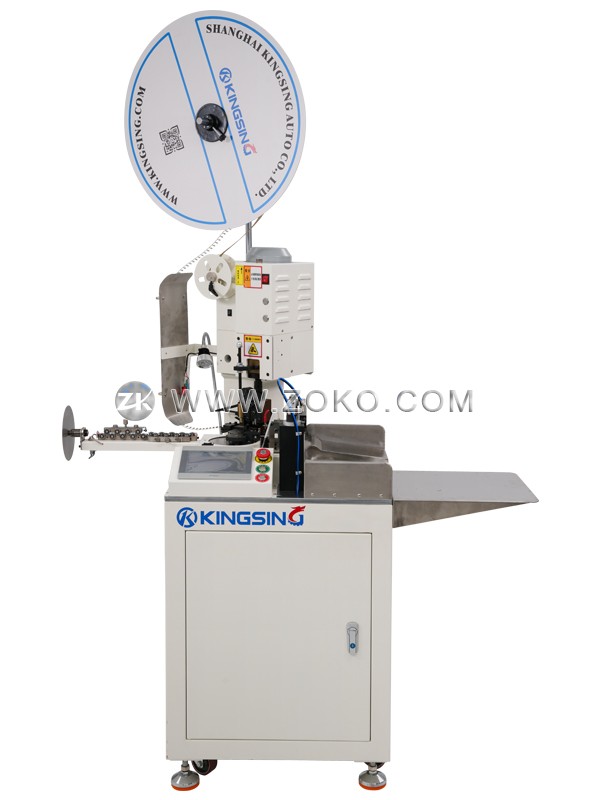

Fully Automatic Single End Terminal Crimping Machine

  • Model:KS-T101
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

KS-T101 is designed for one side cutting and stripping, and the other side full-strip/semi-strip and twisting. All required processing parameters such as cutting depth, cutting length, stripping length and crimping depth can be set in and saved in the LCD touch screen. The most economic and efficient way to process single wires and terminals. KS-T101 is suitable for a broad range of continue terminals. Standard OTP crimping applicator, both side-feeding applicator and straight-feeding applicator can be used on this crimping machine for processing.

  • Built-in motor, beautiful appearance, equipped with universal casters, easy to move;

  • Stable work, large output, and overload protection function;

  • Low noise, low energy consumption, no pollution, and small floor space;

  • It adopts the most advanced European terminal crimping machine, the body structure is exquisite, the universal OTP/2000 and other side and straight feeding applicators on the market can be applied, and the existing terminal machine operation mode is not changed, which is convenient and easy to use;

  • High-precision step motor, machine control is more accurate and stable, and the service life is longer;

  • 7-inch touch screen, digital and graphical control interface, more intuitive;

  • Choose to replace a variety of applicators according to different products, realize the universalization of one machine, and create greater value for customers;

  • The machine body is made of high-strength thick steel plate with precise dimensions to ensure the stability of crimping;

  • Optional crimping force monitoring system, vertical wire pre-feeder and long wire conveyor belt, etc.

  • With the functions of lack of wire detection, machine abnormal detection, low air pressure detection, etc.

Download: (1) (2) (3)

Function: Wire cutting and stripping, terminal crimping

Wire Diameter: 0.05~1mm² (AWG18#-AWG30#)

Cutting Length: 30~3000mm (Optional conveyor belt is required for 800mm or more)

Stripping Length: Head: 10mm Tail: 15mm

Twisting Function: Wire tail twisting

Cutting/Stripping Accuracy: Adjusting range 0.5mm + Cutting Length×0.2% or less

Crimping Force: Standard 2TON

Crimping Stroke: 30mm (40mm can be customized)

Capacity: 1800 PCS/Hour (Depend on cutting length)

Machine Power: 1KW

Display Mode: 7-inch high-definition LCD color touch screen

Control Mode: STM32 microcontroller, 165NA/MIPS working mode, 5US standby wake-up, high-speed computing

Work Voltage: AC220V/50Hz Single Phase

Air Pressure: 0.5-0.7MPa (Must be clean, dry and stable compressed air)

Net Weight: 273KG (Crimping machine)  80KG  (Conveyor belt)

Dimension (L×W×H): 660×650×1600mm  (Crimping machine)   2100×520×400mm (Conveyor belt)

Detection Device: 1.Lack of wire 2. Terminal detection 3. Safety cover is opened 4.Machine is abnormal 5.Total quantity reached

Optional Parts: 1.OTP applicator and blades 2.Vertical wire pre-feeder 3.Reel type wire pre-feeder 4.Long wire conveyor belt 5.Crimping force monitor

Note:

The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
