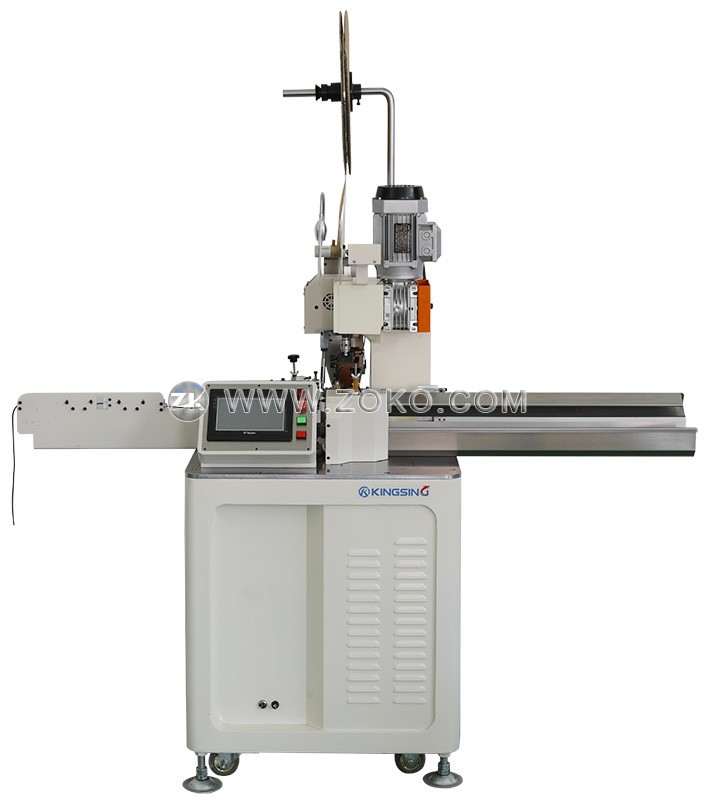

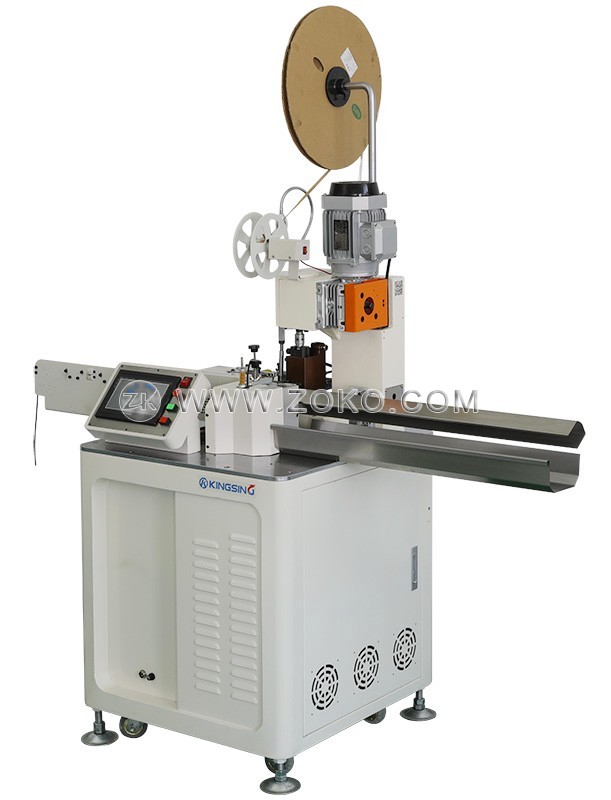

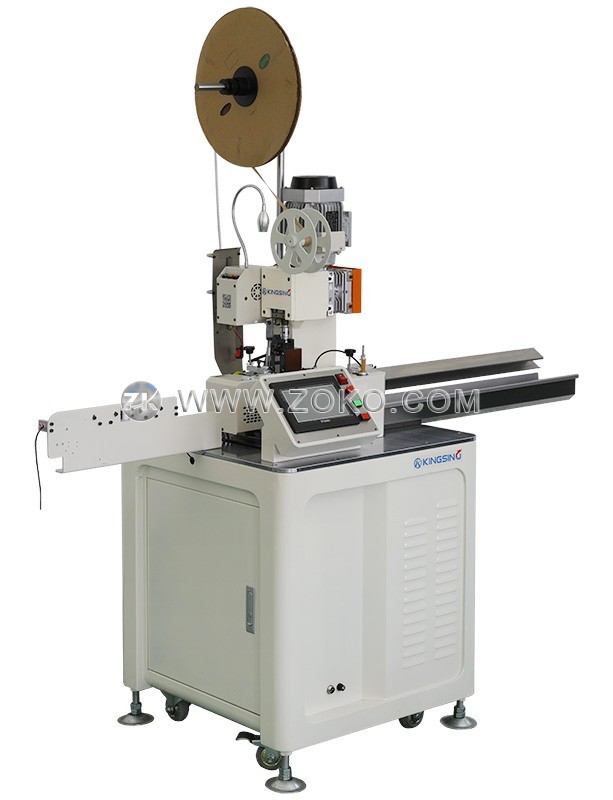

Automatic Two-core Cable Stripping and Crimping Machine

  • Model:KS-T557
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a 1-side automatic crimping machine, specially designed for processing two-core sheathed wires and double-wires. For 2-core sheathed wires, it can automatically strip the outer sheath, strip the core wire, and crimp terminals with one head. For double wires, automatic wire separation, wire stripping, and single-head crimping terminals can be realized. The crimping machine adopts a standard OTP bayonet applicator with a stroke of 30mm, which is suitable for crimping various reel-mounted cross-feed terminals and direct-feed terminals.

  2. One machine can process a variety of different products. When replacing wires and terminals, you only need to replace the corresponding crimping dies, blades, and wire guides. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting wire length, stripping length, crimping position can be set in the program. The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.


Download: (1)

Applicable wire: double wire, 2-core flat sheathed wire, 2-core round sheathed wire

Applicable wire diameter: AWG28~18

Cutting length: 60~9999mm

Outer sheath stripping length: 30~60mm

Core wire stripping length: ≤10mm

Double-wire splitting length: 20~60mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 1.5T

Crimp stroke: 30mm

Production efficiency: 2000~2500 pieces/hour

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 150kg

Dimensions: 650*650*1450mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
