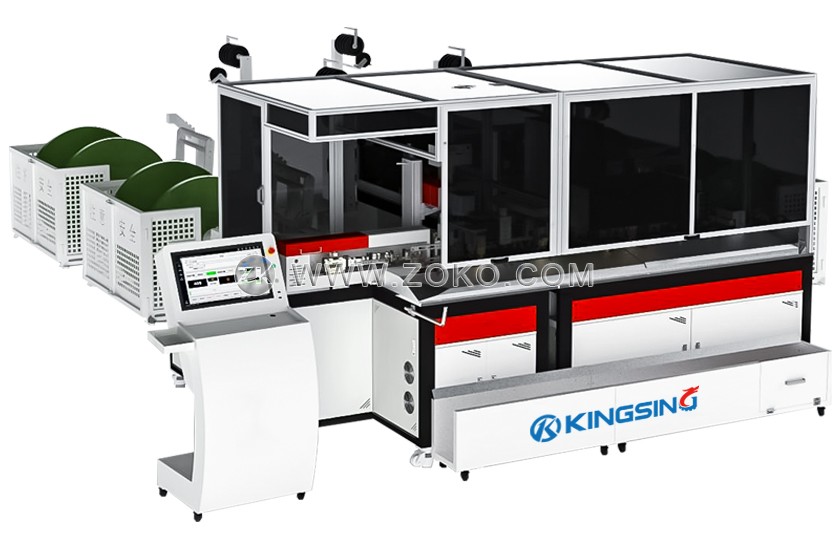

Automatic Tube Insertion, Terminal Crimping, and Housing Insertion Machine

  • Model：
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

  • A variety of wires (different wire diameters, different wire colors) are online at the same time, and production is automatically switched according to the production work order;

  • A variety of terminals are produced simultaneously online and automatically without changing molds. A servo crimping machine is used for terminal crimping. All crimping parameters are automatically switched and the crimping quality is monitored in real time;

  • When multiple housings are produced on the same machine, the housing positioning tooling needs to be replaced;

  • The wire number content is laser engraved, and thermal transfer printing is optional;

  • The supporting data conversion software is seamlessly connected to the production work orders generated by third-party automatic wiring software. Work orders can be dispatched remotely through the internal network and automatically and quickly converted into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).

Power supply: AC220V 50HZ single phase

Processing range: 6mm2~35mm2

Production efficiency: 6~10 wires/minute (when wire length is 1000mm)

Terminal type: round terminal

Wire length: 100mm~3000mm

Stripping length: 1~10mm

Heat shrinkable tube length: 15~40mm

Housing feeding: manual feeding (visual CCD + robot automatic feeding can be used)

Air pressure: about 0.5-07Mpa

Overall dimensions: 9000 X7000 X2000mm

Others: Optional terminal pressure management device and terminal visual inspection system

Heat shrink tube marking: laser engraving, the number of characters depends on the character size and number of characters

Detection device: wire presence detection, heat shrink tube presence detection, terminal crimp detection, insertion housing pullout detection

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
