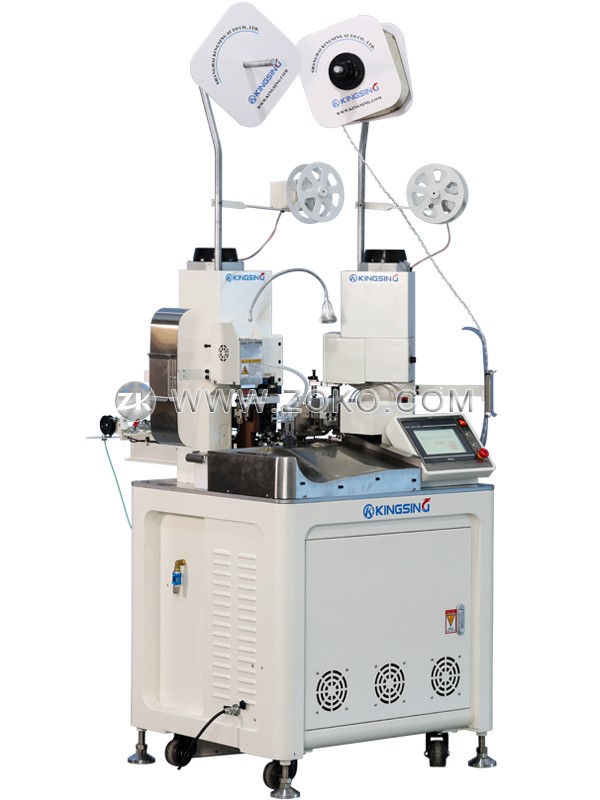

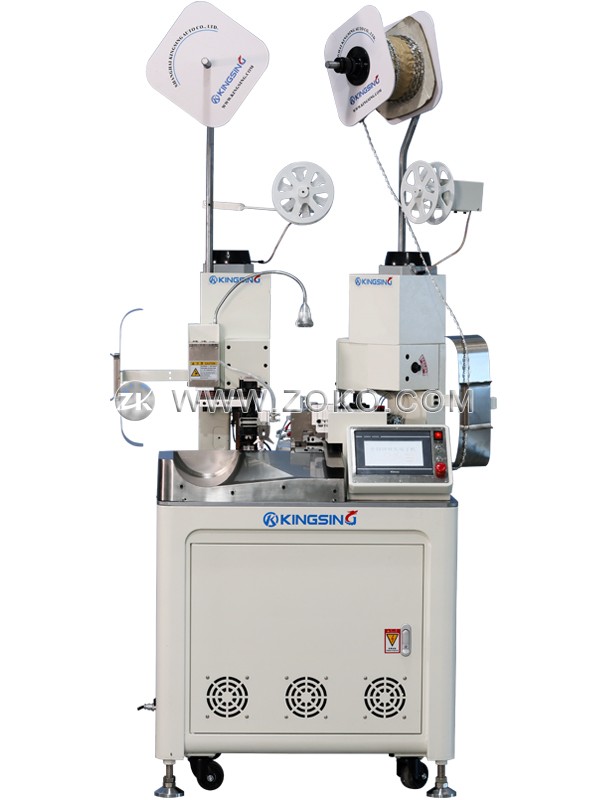

Fully Automatic 2-sided Terminal Crimping Machine

  • Model：KS-T5556
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

Available Wire Size: AWG28~AWG10(0.1~6.0mm2)

Cutting Length: 45~9999mm

Stripping Length: 0~10mm

Capacity: 3000~4500pcs/hour

Length Accuracy: ±(0.5+L*0.002)mm (L=total length)

Crimping Force: 3.0Ton

Applicators: 30mm or 40mm stroke for optional

Program Storage: Max.99 groups

Air Pressure: 0.4 ~ 0.6Mpa (Must be clean, dry and stable compressed air)

Power Supply: AC220V 50/60Hz

Net Weight: 340Kg

Power Rating: 2KW

Dimension: 820x720x1470mm

Detectors: wire run out, low air pressure, terminate error.(Crimping force monitor is optional)

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
