  3. Two-sided Crimp Machine

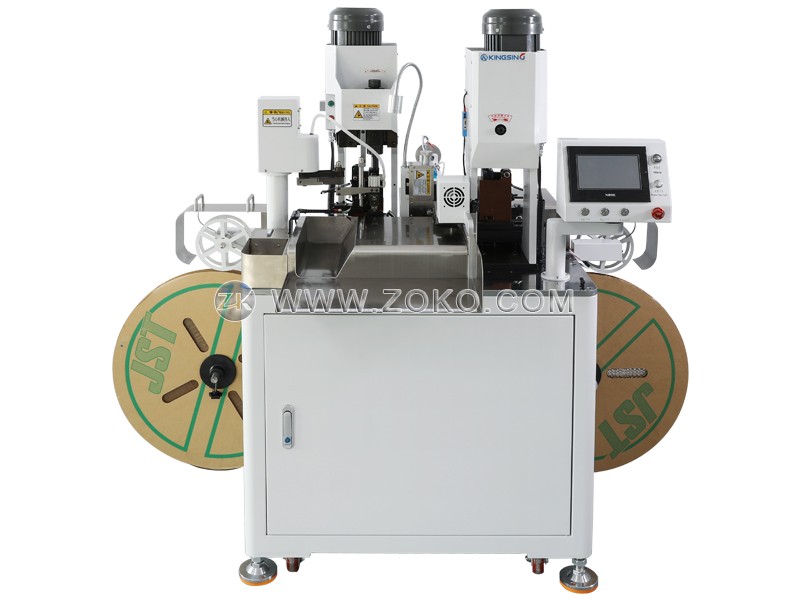

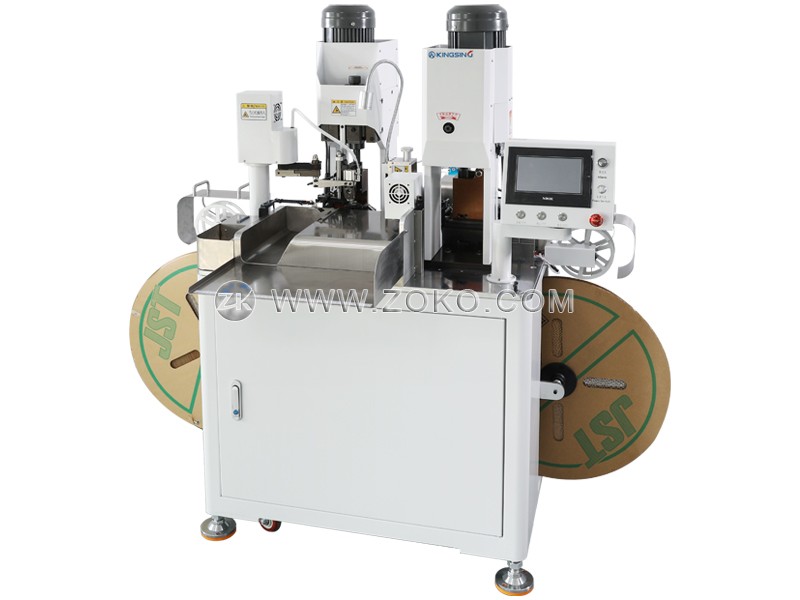

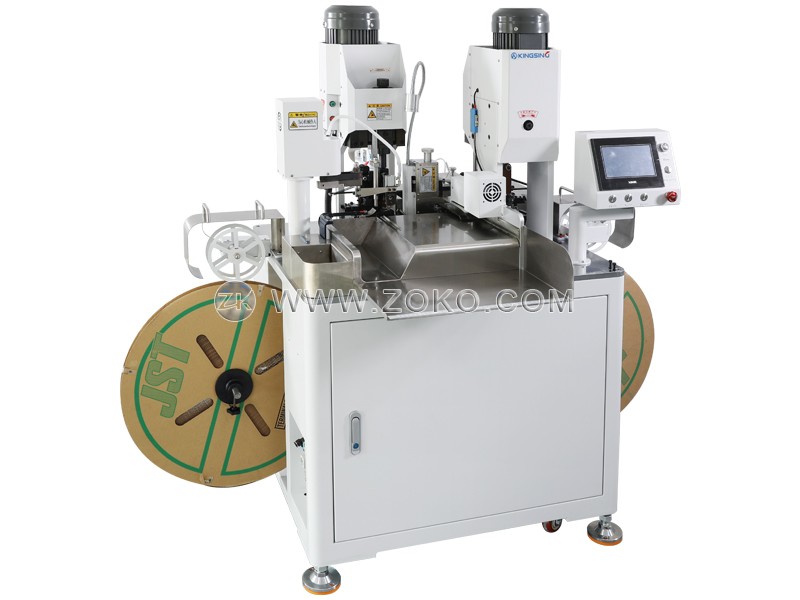

Automatic Two Ends Terminal Crimping Machine

  • Model:KS-T5802
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a servo-type double-sided automatic crimping machine, which is suitable for crimping various cross-feed terminals, straight-feed terminals, and flag-shaped terminals. The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and translation are all driven by high-precision servo motors, with strong power and precise dimensions. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.

  2. This machine adopts a translation mechanism instead of the traditional rotation mechanism, and the wire is always kept straight during the processing process, which is beneficial to improve the positioning accuracy. The terminal machine is integrally formed with nodular cast iron, which has strong rigidity, and the crimping height can be fine-tuned through the precision knob on the top of the crimping machine. The crimping force monitor can be selected. The special suspension head design enables the machine to support the use of high-sensitivity suspension head sensors, which can monitor the pressure curve changes in each crimping process in real time. When the pressure is abnormal, it will automatically alarm and stop to ensure product quality.

  3. Adopting the concept of flexible design, one machine can process a variety of different products, and only need to replace the corresponding fixture when replacing wires and terminals. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time.

Download: (1)

Applicable wire diameter: 0.05~2.0mm2 (AWG30~14)

Cutting length: 40~9999mm

Stripping length: ≤12mm

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Crimping force : 2T (3T models can be customized)

Crimp stroke: 30mm (40mm stroke can be customized)

Applicable terminals: cross-feed terminal, direct-feed terminal, flag terminal

Production efficiency: 4000~5000 pieces/hour

Operation interface: color touch screen

Air pressure requirement: 0.5~0.7Mpa

Working: 220V 50/60Hz

Machine net weight: 360kg

Dimensions: 1380*750*1580mm

Optional configuration: crimping force monitor

Note:

  • The above specifications are for reference only. The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
