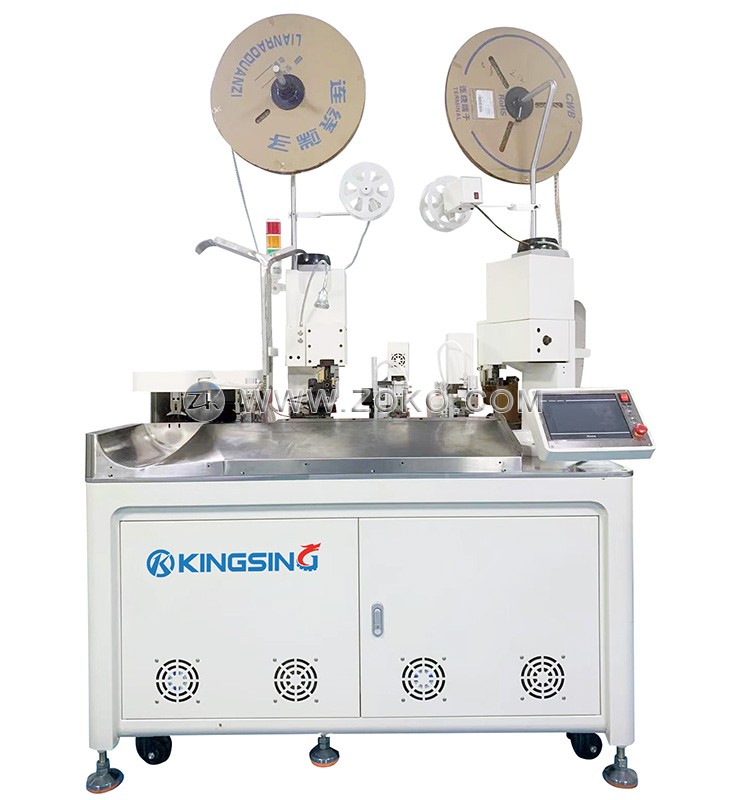

Automatic Wire Crimping & Tube Marking Inserting Machine

This is an economical double-head heat-shrinkable tube crimping machine, which integrates functions such as wire cutting, wire stripping, double-head crimping terminals, double-head insertion into heat-shrinkable tubes, and coding of heat-shrinkable tubes. Powerful and affordable. The reel-mounted heat-shrinkable tube can be cut to a fixed length and coded automatically. The coding method can choose laser marking, ribbon printing and other methods. After cutting and stripping the wire, insert the heat shrinkable tube into the wire. After the terminal crimping is completed, the heat-shrinkable tube is automatically pushed to the designated position, and the heat-shrinkable tube is heated and shrunk in place by the automatic heating device.

The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, the function of inserting heat shrink tubing can be deactivated. When replacing wires and terminals, it is only necessary to replace the corresponding crimping applicator and the corresponding insertion jig. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

Color touch screen operation interface, parameter setting is intuitive and easy to understand, and the coding content of the heat shrinkable tube can be set directly on the touch screen. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time.
