  3. Two-sided Crimp Machine

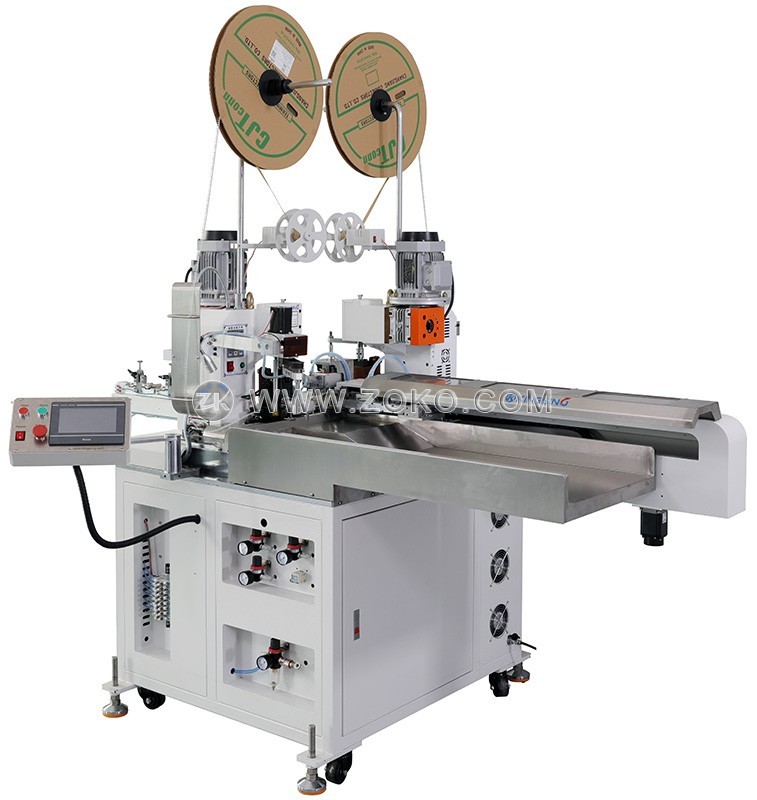

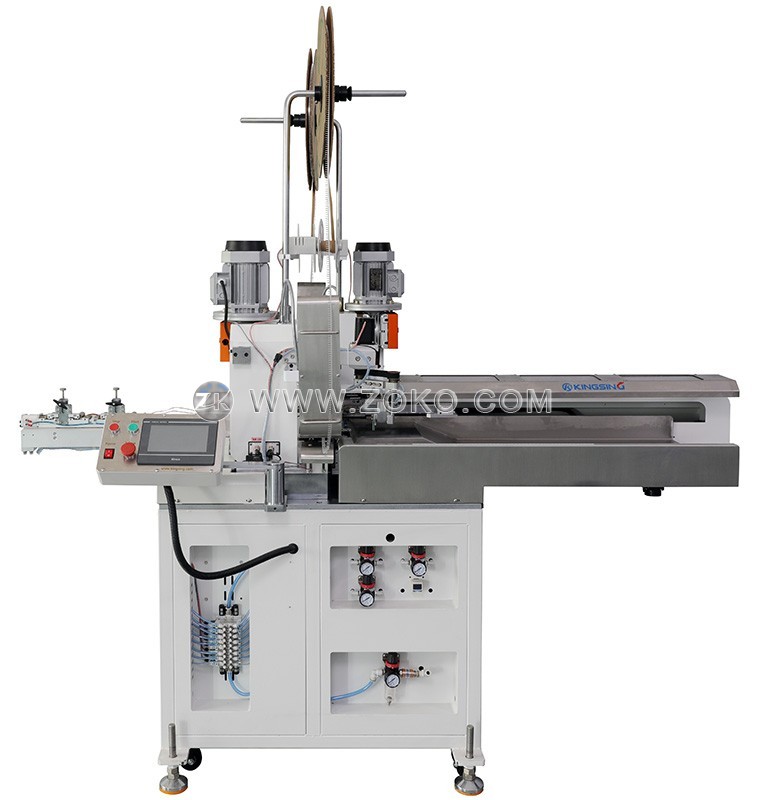

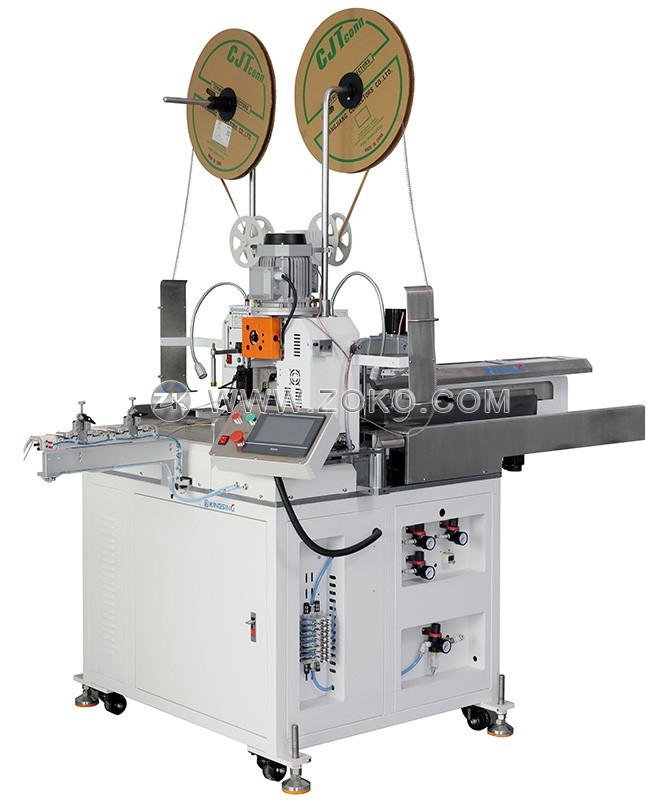

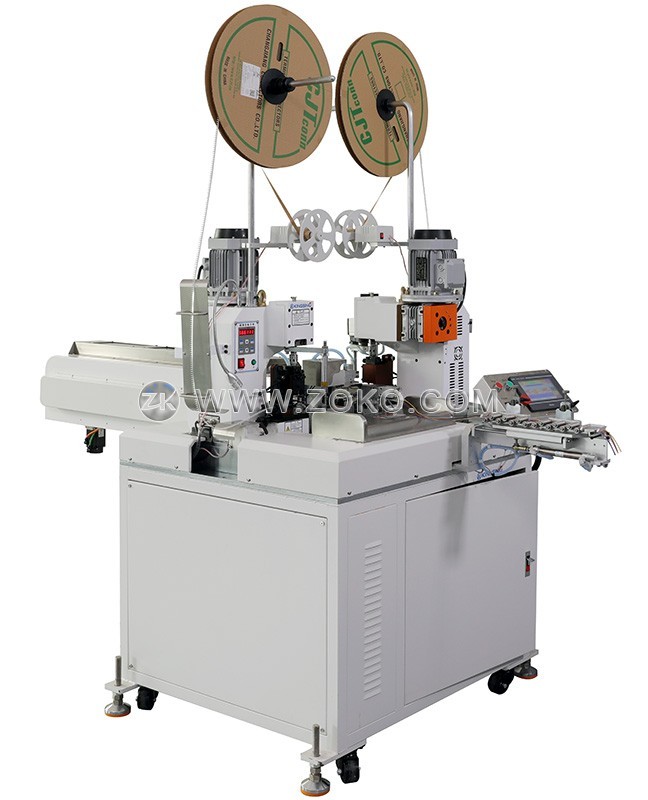

Automatic 5 Wires 2-Sided Terminal Crimping Machine

  • Model:KS-T1052
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a five-wire high-speed double-head automatic terminal machine, which integrates functions such as wire cutting, wire stripping, crimping terminals, and twisted wires. It can process 5 wires at the same time and has high production efficiency. This machine adopts the method of pulling the wire with the wire clip instead of the traditional roller wire feeding. The cutting length is accurate and there is no indentation on the wire surface. The maximum cutting length can be customized according to the demand. In addition, the twisting function can also be selected, which can automatically twist 2 or more wires into twisted wires. When processing long wires, a conveyor belt can be selected, and the processed wires can be placed straight and neatly into the receiving tray.

  2. The workmanship of this machine is precise, the moving parts are controlled by Mitsubishi servo motor, and the terminal machine is integrally formed with ductile iron, which has strong rigidity and stable crimping height. A terminal pressure monitor can be selected to monitor the pressure curve changes of each crimping process in real time, and automatically alarm and stop when the pressure is abnormal.

  3. Adopting the concept of flexible design, one machine can process a variety of different products, and only need to replace the corresponding fixture when replacing wires and terminals. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time.

Download: (1)

Applicable wire diameter: 0.1~1.5mm2 (AWG16~30)

Cutting length: 40~890mm (can be customized)

Stripping length: ≤8mm

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Maximum pressure: 2.5T

Crimp stroke: 30mm (40mm stroke can be customized)

Applicable terminal: horizontal feed terminal, straight feed terminal

Production efficiency: 5000~8000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 350kg

Dimensions: 1500*1080*1650mm

Optional configuration: terminal pressure monitor, automatic twisting function

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
