Fakara Vehicle Data Wire Processing Center

  • Model:KS-A982
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

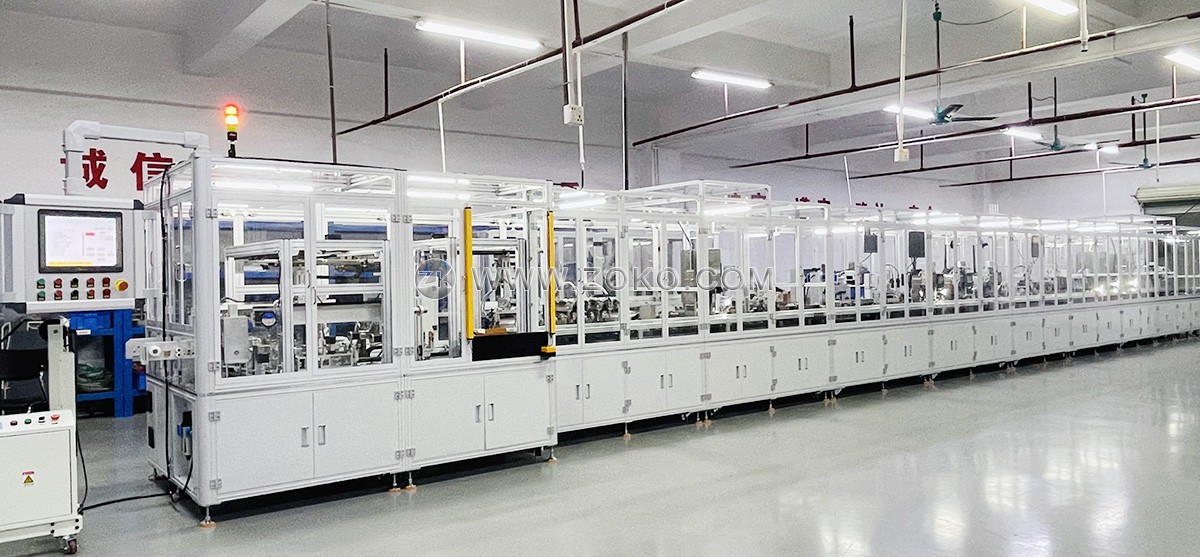

This is a fully automatic Fakara wire harness production line. When processing long wires, the wire coil can be wound into a circle first, and then the wire head and wire tail can be processed later. This machine needs to be customized according to the customer's products, and it is also suitable for processing automotive 10 Gigabit Ethernet, high-speed data wires and other products.

Download: (1) (2)

Applicable wire diameter: Φ2.8~3.3mm (can be customized)

Wire length: 250~450mm

Processing method: both ends are processed at the same time

Production efficiency: 360 sets/hour

Product qualification rate: ≥98%

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Applicable terminal type:

Rosenberger 90°Rosenberger 180°
KINGSINGKINGSING

Dimension:

KINGSINGKINGSING

KINGSING

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
