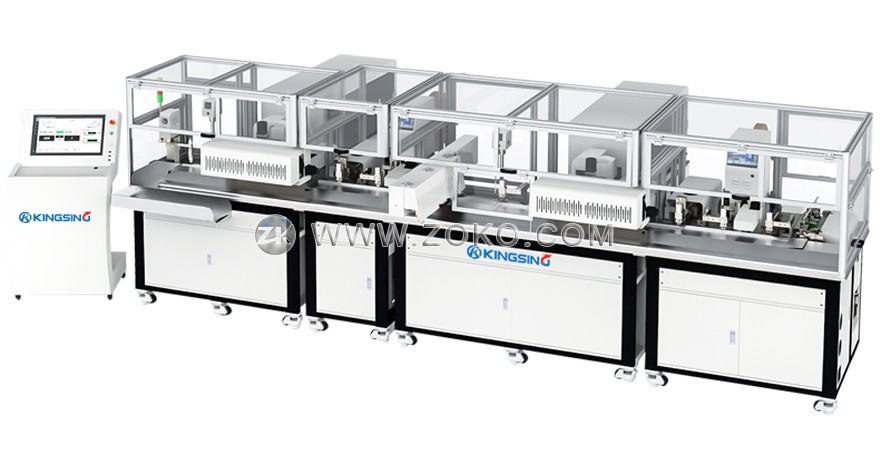

Multi-wire Automatic Switching and Double-ended Tube Insertion Machine

  • Model:
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  • A variety of wires (multiple wire diameters and multiple wire colors), 1 type of heat-shrinkable wire tube or PVC wire tube, all terminals are on line at the same time, and production is automatically switched according to the production work order. Single specifications can be produced in batches, or multiple specifications can be produced in groups. , after each group of wires is produced, a label is printed and attached in real time (indicate the purpose of the cabinet number) to facilitate subsequent cabinet production;

  • Equipped with multi-line automatic switching wire feeding machine and multi-disc integrated pay-off rack to meet the requirements of multiple wires being on line at the same time;

  • Equipped with two sets of single-tube coding machines (thermal transfer printing), which can be used for automatic tube feeding, printing, cutting, and tube insertion of heat shrink tubes and PVC tubes;

  • Equipped with multiple sets of crimping units to ensure that all terminals are on line at the same time, a servo crimping machine is selected to automatically switch all crimping parameters. And real-time monitoring of the crimping quality; using a three-axis robotic arm + circular vibration automatic feeding terminal (no direct vibration), and circular vibration glue spraying treatment to avoid damage to the terminal coating;

  • The optional automatic management and positioning heat shrink molding module can automatically manage the wire number to the set position according to the needs, heat shrink positioning, and heat shrink molding to ensure that the characters are visible on the front of the terminal crimping;

  • The equipment adopts modular design, assembly line layout, simple operation and convenient maintenance;

  • The supporting data conversion software can remotely dispatch work orders through the internal network and automatically and quickly convert them into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).

Power supply: AC220V 50HZ single phase

Wire diameter: AWG8~AWG12

Wire length: 80~2000mm

Stripping length: double ends, 0~15mm

Production efficiency: ≥12 pcs/minute

Air pressure: 0.5~0.7Mpa

Dimensions (L×W×H): 6000*3000*1800mm

Number tube specifications: Ф6 printable round heat shrinkable tube, Ф8~Ф15 printable flat heat shrinkable tube, PVC tube matching the wire diameter

Number tube length: Heat shrink tube is fixed in a length of 15mm, 20mm, 25mm, 30mm, PVC tube length is 15~35mm

Number tube identification: can print various characters, numbers, Chinese characters, etc., can be printed in double rows, and can be equipped with laser coding.

Terminal types: semi-insulated single terminal (IT (tube type)), fully naked single terminal (round or open terminals), chain-tape terminals (all types of chain terminals)

Detection device: detection of wire presence, presence detection of wire tube number, detection of ribbon presence, ribbon breakage detection, end crimp detection

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
