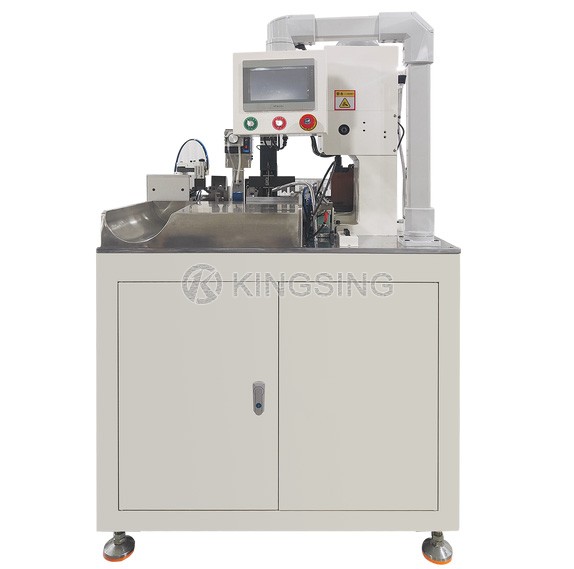

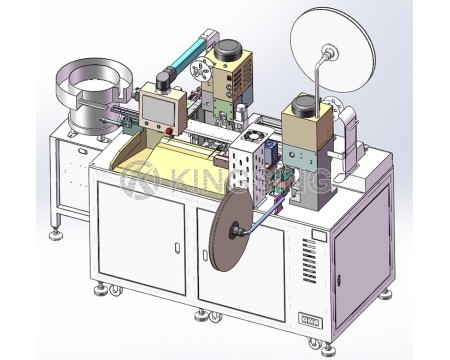

Automatic Wire Twisting Tinning Crimping & Sleeve Insertion Machine

  • Model:KS-A111X
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a fully automatic crimping machine for twisting, tinning, and inserting insulating sheaths, which integrates the functions of cutting, stripping, twisting, tinning, crimping terminals, and inserting insulating sheaths. One end crimps the terminal and inserts into the insulating sheath, and the other end twists and tins the wire. The insulating sheath is automatically fed through the vibrating disc. After the wire is cut and stripped, the sheath is inserted into the wire first, and the insulating sheath is automatically pushed onto the terminal after the crimping of the terminal is completed.

  2. Adopting the concept of modular flexible design, one machine can easily process a variety of different products, and each functional module can be opened or closed freely in the program, for example, the function of inserting the sheath can be closed, and it can be used as an ordinary automatic tinning crimping machine . When replacing the terminal and the insulating sheath, it is only necessary to replace the corresponding crimping applicator, vibrating plate feeding system and the corresponding inserting sheath jig. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. This machine uses a translation mechanism to replace the traditional rotation mechanism. The wire is always kept straight during the processing process, and the positioning is accurate, which effectively solves the instability problem caused by the bending of the wire, and can easily handle various high-standard wire processing.

  4. The crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time. When the crimping force is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard crimping machine is driven by a variable frequency motor, and a servo crimping machine can also be selected.

  5. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.


Applicable wire diameter: AWG24~14 (0.2~2.5mm2)

Cutting length: 80~3000mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.

Main function: one end of the terminal is inserted into the sheath, and the other end is twisted and tinned

Production efficiency: 1500~1600 pieces/hour (with sheath)

Air pressure: 0.5~0.8Mpa

Power Rating: 2000W

Power supply: 220V 50/60Hz (110V can be customized)

Dimensions: 1400*800*1860mm

Optional configuration: long wire conveyor belt, safety shield, crimping force monitor, visual inspection system, servo terminal machine, computer industrial control system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
