  3. Two-sided Crimp Machine

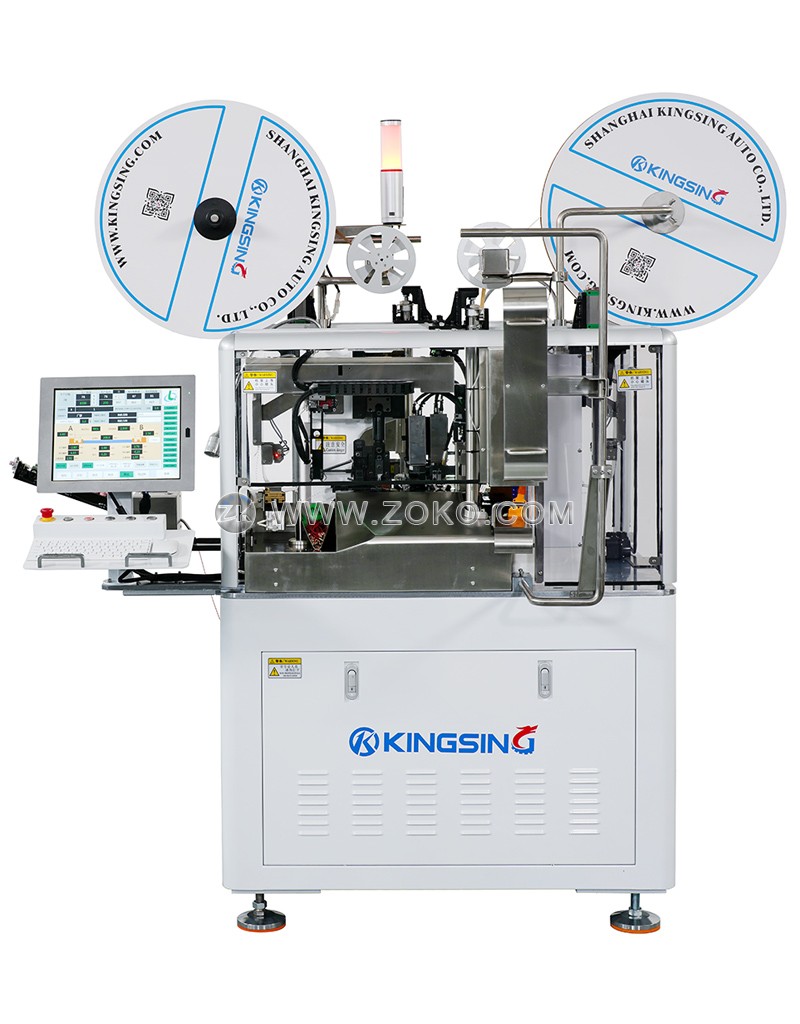

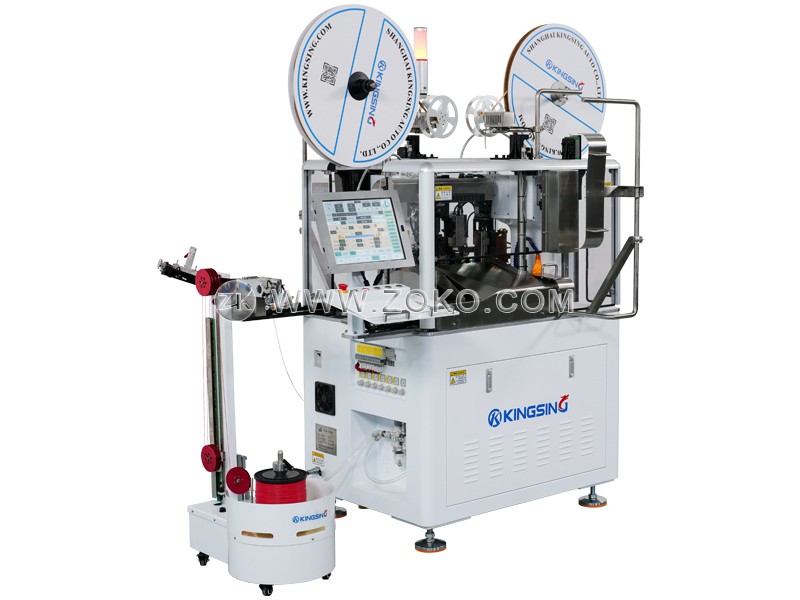

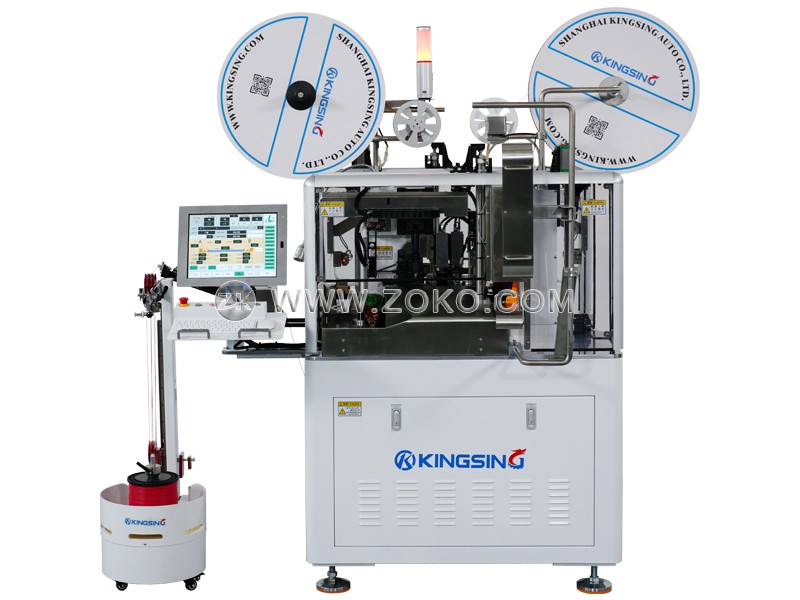

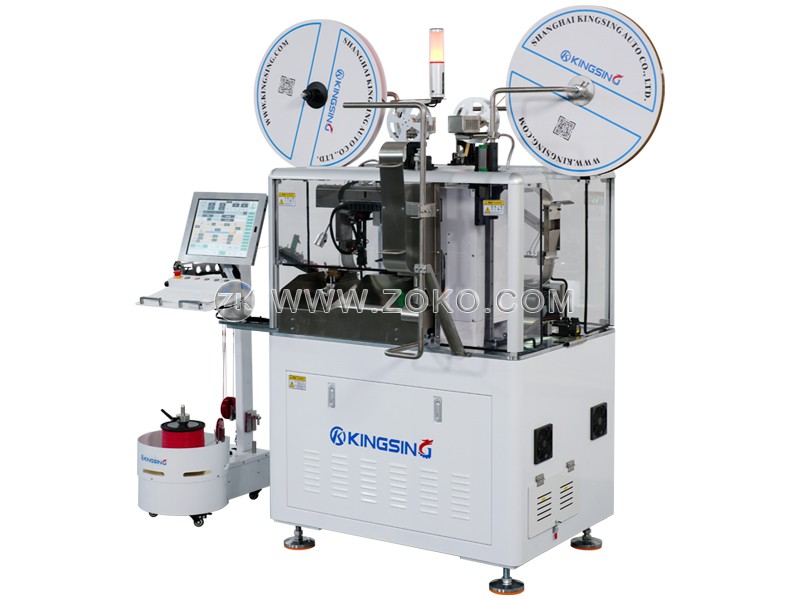

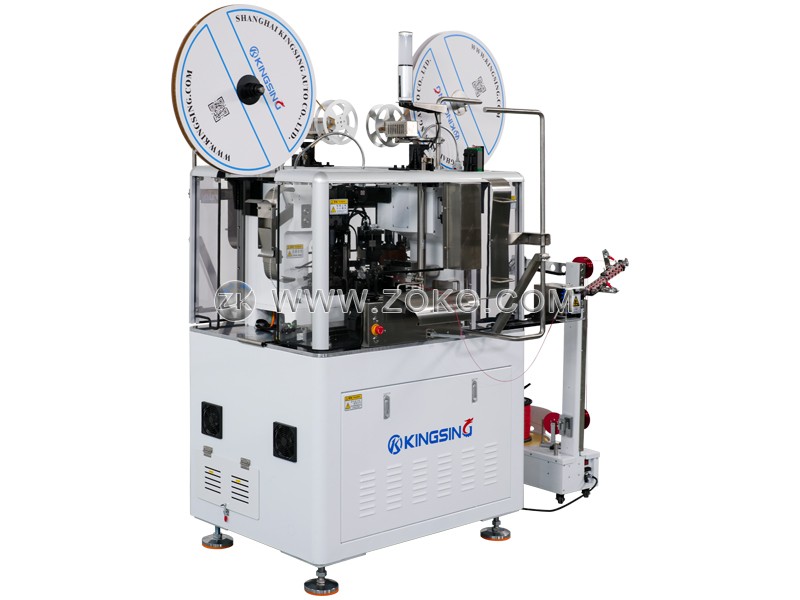

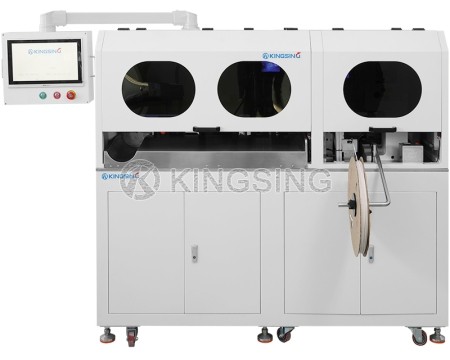

Automatic Terminal Crimping Machine With Crimp Force Monitor

  • Model:KS-D20
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:


  • This is a high-precision full-servo double-sided automatic crimping machine, which integrates functions such as wire cutting, stripping, and double-headed terminal crimping. This machine is equipped with an automatic wire feeding machine, the wire is always kept in a slack state, and the wire feeding can be maintained without tension to ensure the accuracy and stability of the wire feeding. The machine is also equipped with a lifting safety shield, which is not only convenient for technicians to debug the equipment, but also ensures safe operation.

  • The whole machine is precise in workmanship, using Japanese THK modules, SMC cylinders, Omron sensors, and Mitsubishi servo motors. The moving parts such as wire feeding, wire stripping, translation, and terminal crimping are all driven by servo motors, and the crimping height can be set directly in the program. The built-in crimping force monitor can monitor the crimping force curve changes of each crimping process in real time, and automatically alarm and stop when the crimping force is abnormal. The built-in CCD dual-lens visual inspection system adopts the lens imported from Germany, which can detect the effect of wire stripping and terminal crimping to ensure the quality of the finished wire.

  • Adopting the concept of flexible design, one machine can process a variety of different products. When replacing wires and terminals, you only need to replace the corresponding crimping dies and wire guides. Computer industrial control system, Windows operation interface, supports network connection, and can be connected with MES system through LAN. The program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be called out with one key when switching products.


Download: (1)

Applicable wire diameter: AWG30~14 (0.1~2.0mm2)

Cutting length: 40~9999mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Stripping length: ≤15mm

Applicable terminals: cross-feed terminal, direct-feed terminal, flag terminal

Crimping force: 3T

Crimping Motor: Servo Motor

Crimp stroke: 30mm (40mm stroke can be customized)

Production efficiency: 3000~4000 pieces/hour

Operation interface: computer industrial control, Windows system

Air pressure: 0.5~0.7Mpa

Power supply : 220V 50/60Hz

Net weight: 600kg

Dimensions: 1510*980*1780mm

Safety measures: lifting safety shield, three-color alarm light

Detection device: pressure monitor, CCD visual detection system, presence or absence of terminals, wire knotting, lack of wire alarm, air pressure detection, etc.

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
